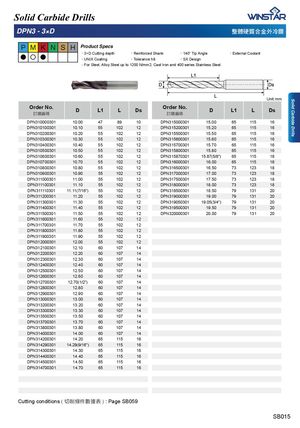

Каталог Winstar монолитный инструмент 2020 - страница 289

Solid Carbide Drills Solid Carbide Drills DPN3 - 3×D 㜃汣䧻幹▗捠外⍆昌 P M K N S H Product Specs 虉3×D Cutting depth 虉Reinforced Shank 虉140° Tip Angle 虉External Coolant β ΰ β 虉UNIX Coating 虉Tolerance h8 虉SX Design 虉For Steel, Alloy Steel up to 1200 N/mm2, Cast Iron and 400 series Stainless Steel. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DPN310000301 10.00 47 89 10 DPN315000301 15.00 65 115 16 DPN310100301 10.10 55 102 12 DPN315200301 15.20 65 115 16 DPN310200301 10.20 55 102 12 DPN315500301 15.50 65 115 16 DPN310300301 10.30 55 102 12 DPN315600301 15.60 65 115 16 DPN310400301 10.40 55 102 12 DPN315700301 15.70 65 115 16 DPN310500301 10.50 55 102 12 DPN315800301 15.80 65 115 16 DPN310600301 10.60 55 102 12 DPN315870301 15.87(5/8") 65 115 16 DPN310700301 10.70 55 102 12 DPN316000301 16.00 65 115 16 DPN310800301 10.80 55 102 12 DPN316500301 16.50 73 123 18 DPN310900301 10.90 55 102 12 DPN317000301 17.00 73 123 18 DPN311000301 11.00 55 102 12 DPN317500301 17.50 73 123 18 DPN311100301 11.10 55 102 12 DPN318000301 18.00 73 123 18 DPN311110301 11.11(7/16") 55 102 12 DPN318500301 18.50 79 131 20 DPN311200301 11.20 55 102 12 DPN319000301 19.00 79 131 20 DPN311300301 11.30 55 102 12 DPN319050301 19.05(3/4") 79 131 20 DPN311400301 11.40 55 102 12 DPN319500301 19.50 79 131 20 DPN311500301 11.50 55 102 12 DPN320000301 20.00 79 131 20 DPN311600301 11.60 55 102 12 DPN311700301 11.70 55 102 12 DPN311800301 11.80 55 102 12 DPN311900301 11.90 55 102 12 DPN312000301 12.00 55 102 12 DPN312100301 12.10 60 107 14 DPN312200301 12.20 60 107 14 DPN312300301 12.30 60 107 14 DPN312400301 12.40 60 107 14 DPN312500301 12.50 60 107 14 DPN312600301 12.60 60 107 14 DPN312700301 12.70(1/2") 60 107 14 DPN312800301 12.80 60 107 14 DPN312900301 12.90 60 107 14 DPN313000301 13.00 60 107 14 DPN313200301 13.20 60 107 14 DPN313300301 13.30 60 107 14 DPN313500301 13.50 60 107 14 DPN313700301 13.70 60 107 14 DPN313800301 13.80 60 107 14 DPN314000301 14.00 60 107 14 DPN314200301 14.20 65 115 16 DPN314290301 14.29(9/16") 65 115 16 DPN314300301 14.30 65 115 16 DPN314400301 14.40 65 115 16 DPN314500301 14.50 65 115 16 DPN314700301 14.70 65 115 16 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB059 SB015
