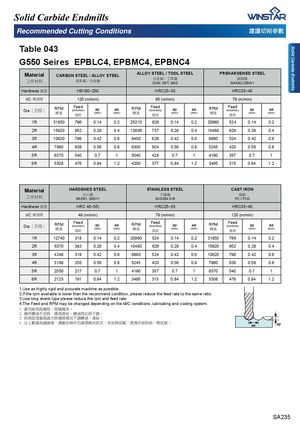

Solid Carbide Endmills Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 043 G550 Seires EPBLC4, EPBMC4, EPBNC4 Material CARBON STEEL / ALLOY STEEL ALLOY STEEL / TOOL STEEL PREHARDENED STEEL ⽴₅㣟㜨 䩂亯撋 0 ▗捠撋 ▗捠撋 0 ⽴⌆撋SCM, SKT, SKD 屎幹撋NAK80 CENA1 Hardness 䧻〵 HB180~250 HRC25~35 HRC35~45 VC 佩憮〵 120 (m/min) 95 (m/min) 79 (m/min) Dia ) ⎒ㄠ * RPM 惘憮 Feed (mm/min)懁仵 ap (mm) ae RPM Feed (mm/min) ap(mm)惘憮懁仵(mm)ae RPM Feed (mm/min) ap(mm)惘憮懁仵(mm)ae(mm) 1R 31850 796 0.14 0.2 25210 629 0.14 0.2 20960 524 0.14 0.2 2R 15920 952 0.28 0.4 12606 757 0.28 0.4 10480 629 0.28 0.4 3R 10620 796 0.42 0.6 8400 629 0.42 0.6 6990 524 0.42 0.6 4R 7960 638 0.56 0.8 6300 504 0.56 0.8 5245 420 0.56 0.8 5R 6370 540 0.7 1 5040 428 0.7 1 4190 357 0.7 1 6R 5308 476 0.84 1.2 4200 377 0.84 1.2 3495 315 0.84 1.2 Material HARDENED STEEL STAINLESS STEEL CAST IRON ⽴₅㣟㜨 㽻䇺撋SKD61, SKD11 ᾜ斌撋SUS304 316 旓旄FC / FCD Hardness 䧻〵 HRC 40~55) HRC25~35 HRC35~45 VC 佩憮〵 48 (m/min) 79 (m/min) 120 (m/min) Dia ) ⎒ㄠ * RPM 惘憮 Feed (mm/min)懁仵 ap (mm) ae RPM Feed (mm/min) ap(mm)惘憮懁仵(mm)ae RPM Feed (mm/min) ap(mm)惘憮懁仵(mm)ae(mm) 1R 12740 318 0.14 0.2 20960 524 0.14 0.2 31850 796 0.14 0.2 2R 6370 383 0.28 0.4 10480 629 0.28 0.4 15920 952 0.28 0.4 3R 4246 318 0.42 0.6 6990 524 0.42 0.6 10620 796 0.42 0.6 4R 3188 255 0.56 0.8 5245 420 0.56 0.8 7960 638 0.56 0.8 5R 2550 217 0.7 1 4190 357 0.7 1 6370 540 0.7 1 6R 2125 191 0.84 1.2 3495 315 0.84 1.2 5308 476 0.84 1.2 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA235
