Каталог Winstar монолитный инструмент 2020 - страница 238

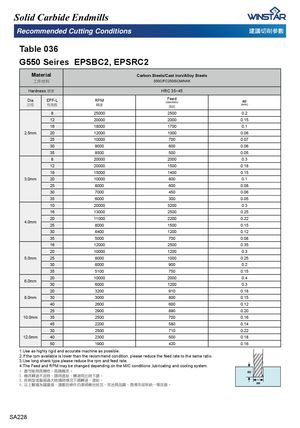

Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 036 G550 Seires EPSBC2, EPSRC2 Material Carbon Steels/Cast iron/Alloy Steels ⽴₅㣟㜨 S50C/FC250/SCM/NAK Hardness 䧻〵 HRC 35~45 Dia EFF-L RPM Feed (mm/min) ap ⎒ㄠ 㢘㛗朆 惘憮 懁仵 (mm) 8 25000 2500 0.2 12 20000 2000 0.15 16 18000 1700 0.1 2.5mm 20 12000 1000 0.08 25 10000 700 0.07 30 9000 600 0.06 35 8500 500 0.05 8 20000 2000 0.3 12 20000 1500 0.18 16 15000 1400 0.15 3.0mm 20 10000 800 0.1 25 8000 600 0.08 30 7000 450 0.06 35 6000 300 0.05 10 20000 3200 0.3 16 13000 2500 0.25 20 11000 2200 0.22 4.0mm 25 8000 1500 0.15 30 6400 1200 0.12 35 5000 700 0.08 16 12000 2500 0.35 20 10000 1200 0.3 5.0mm 25 8000 1000 0.25 30 6000 900 0.2 35 5100 750 0.15 20 10000 2000 0.4 6.0mm 30 6000 1200 0.3 20 3200 910 0.18 8.0mm 30 3000 800 0.15 40 2600 600 0.12 25 2900 890 0.20 10.0mm 35 2500 700 0.16 45 2200 580 0.14 30 2500 710 0.22 12.0mm 40 2300 500 0.18 50 1900 420 0.16 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA228
