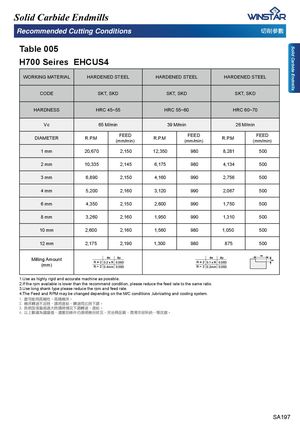

Solid Carbide Endmills Solid Carbide Endmills Recommended Cutting Conditions ⎖⏙╒㜇 Table 005 H700 Seires EHCUS4 WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL CODE SKT, SKD SKT, SKD SKT, SKD HARDNESS HRC 45~55 HRC 55~60 HRC 60~70 Vc 65 M/min 39 M/min 26 M/min DIAMETER R.P.M FEED(mm/min) R.P.M FEED(mm/min) R.P.M FEED(mm/min) 1 mm 20,670 2,150 12,350 980 8,281 500 2 mm 10,335 2,145 6,175 980 4,134 500 3 mm 6,890 2,150 4,160 990 2,756 500 4 mm 5,200 2,160 3,120 990 2,067 500 6 mm 4,350 2,150 2,600 990 1,750 500 8 mm 3,260 2,160 1,950 990 1,310 500 10 mm 2,600 2,160 1,560 980 1,050 500 12 mm 2,175 2,190 1,300 980 875 500 Milling Amount (mm) 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA197
