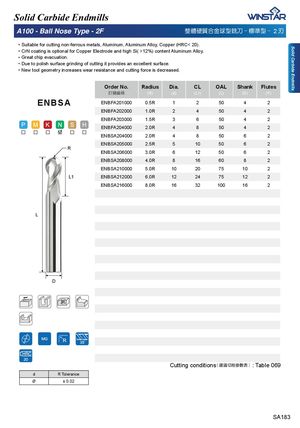

Solid Carbide Endmills A100 - Ball Nose Type - 2F 㜃汣䧻幹▗捠䖒⤚搠⎏ . 㮨䀥⤚ .!2 ⎒ ᅚ Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20). Solid Carbide Endmills ᅚ CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy. ᅚ Great chip evacuation. ᅚ Due to polish surface grinding of cutting it provides an excellent surface. ᅚ New tool geometry increases wear resistance and cutting force is decreased. Order No. Radius Dia. CL OAL Shank Flutes 宑庋佷䩋 (R) (d) (L1) (L) (D) (F) ENBSA ENBFA201000 0.5R 1 2 50 4 2 ENBFA202000 1.0R 2 4 50 4 2 ENBFA203000 1.5R 3 6 50 4 2 ENBFA204000 2.0R 4 8 50 4 2 ENBSA204000 2.0R 4 8 50 6 2 ENBSA205000 2.5R 5 10 50 6 2 R ENBSA206000 3.0R 6 12 50 6 2 ENBSA208000 4.0R 8 16 60 8 2 ENBSA210000 5.0R 10 20 75 10 2 L1 ENBSA212000 6.0R 12 24 75 12 2 ENBSA216000 8.0R 16 32 100 16 2 L D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 069 d R Tolerance Ø ± 0.02 SA183
