Каталог Winstar монолитный инструмент 2020 - страница 186

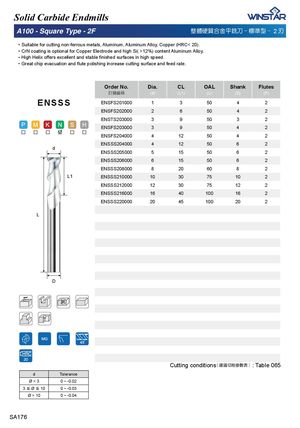

Solid Carbide Endmills A100 - Square Type - 2F 㜃汣䧻幹▗捠。搠⎏ . 㮨䀥⤚ .!2 ⎒ ᅚSuitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20). ᅚCrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy. ᅚ +LJK+HOL[RႇHUVH[FHOOHQWDQGVWDEOH¿QLVKHGVXUIDFHVLQKLJKVSHHG ᅚ *UHDWFKLSHYDFXDWLRQDQGÀXWHSROLVKLQJLQFUHDVHFXWWLQJVXUIDFHDQGIHHGUDWH Order No. Dia. CL OAL Shank Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) ENSSS ENSFS201000 1 3 50 4 2 ENSFS202000 2 6 50 4 2 ENSTS203000 3 9 50 3 2 ENSFS203000 3 9 50 4 2 ENSFS204000 4 12 50 4 2 ENSSS204000 4 12 50 6 2 d ENSSS205000 5 15 50 6 2 ENSSS206000 6 15 50 6 2 ENSSS208000 8 20 60 8 2 L1 ENSSS210000 10 30 75 10 2 ENSSS212000 12 30 75 12 2 ENSSS216000 16 40 100 16 2 ENSSS220000 20 45 100 20 2 L D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 065 d Tolerance Ø<3 0 ~ -0.02 3 Ŝ Ø Ŝ 10 0 ~ -0.03 Ø > 10 0 ~ -0.04 SA176
