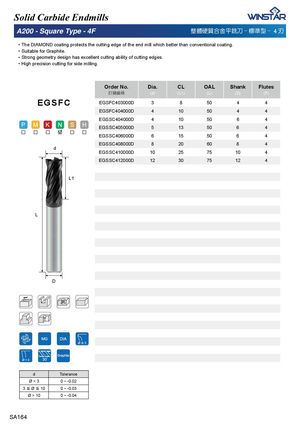

Solid Carbide Endmills A200 - Square Type - 4F 㜃汣䧻幹▗捠。搠⎏ . 㮨䀥⤚ .!4 ⎒ ᅚ The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ᅚ Suitable for Graphite. ᅚ Strong geometry design has excellent cutting ability of cutting edges. ᅚ High precision cutting for side milling. Order No. Dia. CL OAL Shank Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) EGSFC EGSFC403000D 3 8 50 4 4 EGSFC404000D 4 10 50 4 4 EGSSC404000D 4 10 50 6 4 EGSSC405000D 5 13 50 6 4 EGSSC406000D 6 15 50 6 4 EGSSC408000D 8 20 60 8 4 d EGSSC410000D 10 25 75 10 4 EGSSC412000D 12 30 75 12 4 L1 L D d Tolerance Ø<3 0 ~ -0.02 3 Ŝ Ø Ŝ 10 0 ~ -0.03 Ø > 10 0 ~ -0.04 SA164
