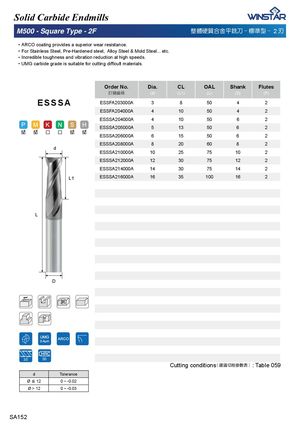

Solid Carbide Endmills M500 - Square Type - 2F 㜃汣䧻幹▗捠。搠⎏ . 㮨䀥⤚ .!2 ⎒ ᅚARCO coating provides a superior wear resistance. ᅚFor Stainless Steel, Pre-Hardened steel, Alloy Steel & Mold Steel... etc. ᅚIncredible toughness and vibration reduction at high speeds. ᅚ 80*FDUELGHJUDGHLVVXLWDEOHIRUFXWWLQJGLႈFXOWPDWHULDOV Order No. Dia. CL OAL Shank Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) ESSSA ESSFA203000A 3 8 50 4 2 ESSFA204000A 4 10 50 4 2 ESSSA204000A 4 10 50 6 2 ESSSA205000A 5 13 50 6 2 ESSSA206000A 6 15 50 6 2 ESSSA208000A 8 20 60 8 2 d ESSSA210000A 10 25 75 10 2 ESSSA212000A 12 30 75 12 2 ESSSA214000A 14 30 75 14 2 L1 ESSSA216000A 16 35 100 16 2 L D 35 50 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 059 d Tolerance Ø Ŝ 12 0 ~ -0.02 Ø > 12 0 ~ -0.03 SA152
