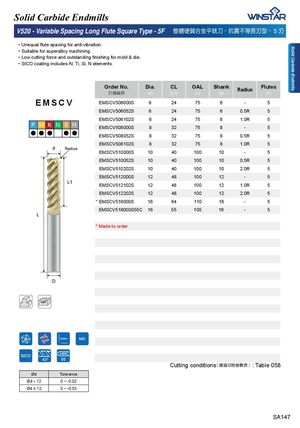

Solid Carbide Endmills Solid Carbide Endmills V520 - Variable Spacing Long Flute Square Type - 5F 㜃汣䧻幹▗捠。搠⎏ . 㐦梖ᾜ䳘朆⎒⤚ .!5 ⎒ ᅚ 8QHTXDOÀXWHVSDFLQJIRUDQWLYLEUDWLRQ ᅚSuitable for superalloy machining. ᅚ /RZFXWWLQJIRUFHDQGRXWVWDQGLQJ¿QLVKLQJIRUPROG GLH ᅚSICO coating includes Al, Ti, Si, N elements. Order No. Dia. CL OAL Shank Radius Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) EMSCV EMSCV506000S 6 24 75 6 - 5 EMSCV506052S 6 24 75 6 0.5R 5 EMSCV506102S 6 24 75 6 1.0R 5 P M K N S H EMSCV508000S 8 32 75 8 - 5 ĸ ĸ ĸ ĸ ĸ EMSCV508052S 8 32 75 8 0.5R 5 EMSCV508102S 8 32 75 8 1.0R 5 d Radius EMSCV510000S 10 40 100 10 - 5 EMSCV510052S 10 40 100 10 0.5R 5 EMSCV510202S 10 40 100 10 2.0R 5 EMSCV512000S 12 48 100 12 - 5 L1 EMSCV512102S 12 48 100 12 1.0R 5 EMSCV512202S 12 48 100 12 2.0R 5 * EMSCV516000S 16 64 110 16 - 5 EMSCV516000S55C 16 55 105 16 - 5 L * Made to order D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 058 Ød Tolerance Ød < 12 0 ~ -0.02 Ød • 12 0 ~ -0.03 SA147
