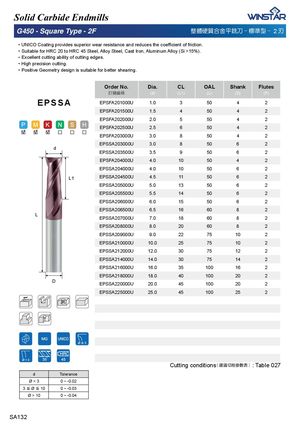

Solid Carbide Endmills G450 - Square Type - 2F 㜃汣䧻幹▗捠。搠⎏ . 㮨䀥⤚ .!2 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 20 to HRC 45 Steel, Alloy Steel, Cast Iron, Aluminum Alloy (Si >15%). ᅚExcellent cutting ability of cutting edges. ᅚHigh precision cutting. ᅚPositive Geometry design is suitable for better shearing. Order No. Dia. CL OAL Shank Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) EPSSA EPSFA201000U 1.0 3 50 4 2 EPSFA201500U 1.5 4 50 4 2 EPSFA202000U 2.0 5 50 4 2 EPSFA202500U 2.5 6 50 4 2 EPSFA203000U 3.0 8 50 4 2 EPSSA203000U 3.0 8 50 6 2 d EPSSA203500U 3.5 9 50 6 2 EPSFA204000U 4.0 10 50 4 2 EPSSA204000U 4.0 10 50 6 2 L1 EPSSA204500U 4.5 11 50 6 2 EPSSA205000U 5.0 13 50 6 2 EPSSA205500U 5.5 14 50 6 2 EPSSA206000U 6.0 15 50 6 2 EPSSA206500U 6.5 16 60 8 2 L EPSSA207000U 7.0 18 60 8 2 EPSSA208000U 8.0 20 60 8 2 EPSSA209000U 9.0 22 75 10 2 EPSSA210000U 10.0 25 75 10 2 EPSSA212000U 12.0 30 75 12 2 EPSSA214000U 14.0 30 75 14 2 EPSSA216000U 16.0 35 100 16 2 EPSSA218000U 18.0 40 100 20 2 D EPSSA220000U 20.0 45 100 20 2 EPSSA225000U 25.0 45 100 25 2 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 027 d Tolerance Ø<3 0 ~ -0.02 3 Ŝ Ø Ŝ 10 0 ~ -0.03 Ø > 10 0 ~ -0.04 SA132
