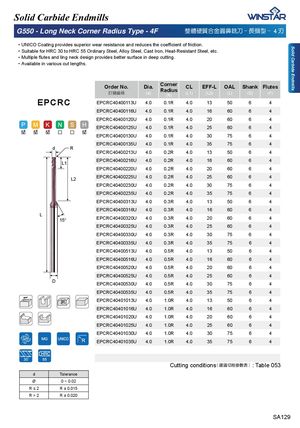

Solid Carbide Endmills Solid Carbide Endmills G550 - Long Neck Corner Radius Type - 4F 㜃汣䧻幹▗捠⢢烊搠⎏ . 朆槇⤚ .!4 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚ 0XOWLSOHÀXWHVDQGOLQJQHFNGHVLJQSURYLGHVEHWWHUVXUIDFHLQGHHSFXWWLQJ ᅚAvailable in various cut lengths. Order No.宑庋佷䩋 Dia. (d) CornerRadius(R)CL(L1)EFF-L OAL Shank Flutes(L2)(L)(D)(F) EPCRC EPCRC40400113U 4.0 0.1R 4.0 13 50 6 4 EPCRC40400116U 4.0 0.1R 4.0 16 60 6 4 EPCRC40400120U 4.0 0.1R 4.0 20 60 6 4 EPCRC40400125U 4.0 0.1R 4.0 25 60 6 4 EPCRC40400130U 4.0 0.1R 4.0 30 75 6 4 EPCRC40400135U 4.0 0.1R 4.0 35 75 6 4 d R EPCRC40400213U 4.0 0.2R 4.0 13 50 6 4 L1 EPCRC40400216U 4.0 0.2R 4.0 16 60 6 4 EPCRC40400220U 4.0 0.2R 4.0 20 60 6 4 L2 EPCRC40400225U 4.0 0.2R 4.0 25 60 6 4 EPCRC40400230U 4.0 0.2R 4.0 30 75 6 4 EPCRC40400235U 4.0 0.2R 4.0 35 75 6 4 EPCRC40400313U 4.0 0.3R 4.0 13 50 6 4 EPCRC40400316U 4.0 0.3R 4.0 16 60 6 4 L 15° EPCRC40400320U 4.0 0.3R 4.0 20 60 6 4 EPCRC40400325U 4.0 0.3R 4.0 25 60 6 4 EPCRC40400330U 4.0 0.3R 4.0 30 75 6 4 EPCRC40400335U 4.0 0.3R 4.0 35 75 6 4 EPCRC40400513U 4.0 0.5R 4.0 13 50 6 4 EPCRC40400516U 4.0 0.5R 4.0 16 60 6 4 EPCRC40400520U 4.0 0.5R 4.0 20 60 6 4 EPCRC40400525U 4.0 0.5R 4.0 25 60 6 4 D EPCRC40400530U 4.0 0.5R 4.0 30 75 6 4 EPCRC40400535U 4.0 0.5R 4.0 35 75 6 4 EPCRC40401013U 4.0 1.0R 4.0 13 50 6 4 EPCRC40401016U 4.0 1.0R 4.0 16 60 6 4 EPCRC40401020U 4.0 1.0R 4.0 20 60 6 4 EPCRC40401025U 4.0 1.0R 4.0 25 60 6 4 EPCRC40401030U 4.0 1.0R 4.0 30 75 6 4 EPCRC40401035U 4.0 1.0R 4.0 35 75 6 4 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 053 d Tolerance Ø 0 ~ 0.02 5” R ± 0.015 R>2 R ± 0.020 SA129
