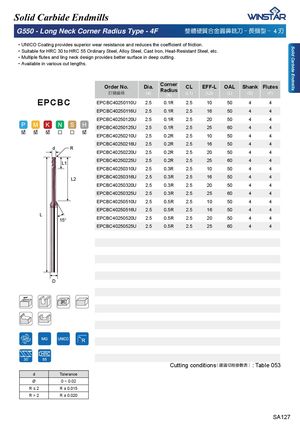

Каталог Winstar монолитный инструмент 2020 - страница 137

Solid Carbide Endmills Solid Carbide Endmills G550 - Long Neck Corner Radius Type - 4F 㜃汣䧻幹▗捠⢢烊搠⎏ . 朆槇⤚ .!4 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚ 0XOWLSOHÀXWHVDQGOLQJQHFNGHVLJQSURYLGHVEHWWHUVXUIDFHLQGHHSFXWWLQJ ᅚAvailable in various cut lengths. Order No.宑庋佷䩋 Dia. (d) CornerRadius(R)CL(L1)EFF-L OAL Shank Flutes(L2)(L)(D)(F) EPCBC EPCBC40250110U 2.5 0.1R 2.5 10 50 4 4 EPCBC40250116U 2.5 0.1R 2.5 16 50 4 4 EPCBC40250120U 2.5 0.1R 2.5 20 50 4 4 EPCBC40250125U 2.5 0.1R 2.5 25 60 4 4 EPCBC40250210U 2.5 0.2R 2.5 10 50 4 4 EPCBC40250216U 2.5 0.2R 2.5 16 50 4 4 d R EPCBC40250220U 2.5 0.2R 2.5 20 50 4 4 L1 EPCBC40250225U 2.5 0.2R 2.5 25 60 4 4 EPCBC40250310U 2.5 0.3R 2.5 10 50 4 4 L2 EPCBC40250316U 2.5 0.3R 2.5 16 50 4 4 EPCBC40250320U 2.5 0.3R 2.5 20 50 4 4 EPCBC40250325U 2.5 0.3R 2.5 25 60 4 4 EPCBC40250510U 2.5 0.5R 2.5 10 50 4 4 EPCBC40250516U 2.5 0.5R 2.5 16 50 4 4 L 15° EPCBC40250520U 2.5 0.5R 2.5 20 50 4 4 EPCBC40250525U 2.5 0.5R 2.5 25 60 4 4 D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 053 d Tolerance Ø 0 ~ 0.02 5” R ± 0.015 R>2 R ± 0.020 SA127
