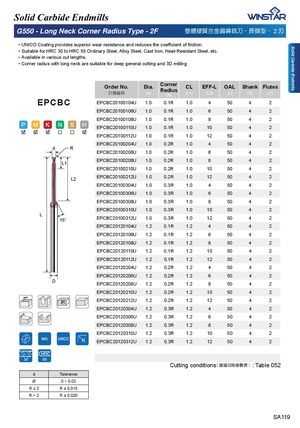

Solid Carbide Endmills Solid Carbide Endmills G550 - Long Neck Corner Radius Type - 2F 㜃汣䧻幹▗捠⢢烊搠⎏ . 朆槇⤚ .!2 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚAvailable in various cut lengths. ᅚCorner radius with long neck are suitable for deep general cutting and 3D milling. Order No.宑庋佷䩋 Dia. (d) CornerRadius(R)CL(L1)EFF-L OAL Shank Flutes(L2)(L)(D)(F) EPCBC EPCBC20100104U 1.0 0.1R 1.0 4 50 4 2 EPCBC20100106U 1.0 0.1R 1.0 6 50 4 2 EPCBC20100108U 1.0 0.1R 1.0 8 50 4 2 EPCBC20100110U 1.0 0.1R 1.0 10 50 4 2 EPCBC20100112U 1.0 0.1R 1.0 12 50 4 2 EPCBC20100204U 1.0 0.2R 1.0 4 50 4 2 d R EPCBC20100206U 1.0 0.2R 1.0 6 50 4 2 L1 EPCBC20100208U 1.0 0.2R 1.0 8 50 4 2 EPCBC20100210U 1.0 0.2R 1.0 10 50 4 2 L2 EPCBC20100212U 1.0 0.2R 1.0 12 50 4 2 EPCBC20100304U 1.0 0.3R 1.0 4 50 4 2 EPCBC20100306U 1.0 0.3R 1.0 6 50 4 2 EPCBC20100308U 1.0 0.3R 1.0 8 50 4 2 EPCBC20100310U 1.0 0.3R 1.0 10 50 4 2 L 15° EPCBC20100312U 1.0 0.3R 1.0 12 50 4 2 EPCBC20120104U 1.2 0.1R 1.2 4 50 4 2 EPCBC20120106U 1.2 0.1R 1.2 6 50 4 2 EPCBC20120108U 1.2 0.1R 1.2 8 50 4 2 EPCBC20120110U 1.2 0.1R 1.2 10 50 4 2 EPCBC20120112U 1.2 0.1R 1.2 12 50 4 2 EPCBC20120204U 1.2 0.2R 1.2 4 50 4 2 EPCBC20120206U 1.2 0.2R 1.2 6 50 4 2 D EPCBC20120208U 1.2 0.2R 1.2 8 50 4 2 EPCBC20120210U 1.2 0.2R 1.2 10 50 4 2 EPCBC20120212U 1.2 0.2R 1.2 12 50 4 2 EPCBC20120304U 1.2 0.3R 1.2 4 50 4 2 EPCBC20120306U 1.2 0.3R 1.2 6 50 4 2 EPCBC20120308U 1.2 0.3R 1.2 8 50 4 2 EPCBC20120310U 1.2 0.3R 1.2 10 50 4 2 EPCBC20120312U 1.2 0.3R 1.2 12 50 4 2 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 052 d Tolerance Ø 0 ~ 0.02 5” R ± 0.015 R>2 R ± 0.020 SA119
