Каталог Winstar монолитный инструмент 2020 - страница 116

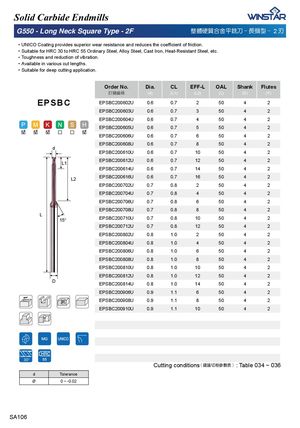

Solid Carbide Endmills G550 - Long Neck Square Type - 2F 㜃汣䧻幹▗捠。搠⎏ . 朆槇⤚ .!2 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚToughness and reduction of vibration. ᅚAvailable in various cut lengths. ᅚSuitable for deep cutting application. Order No. Dia. CL EFF-L OAL Shank Flutes 宑庋佷䩋 (d) (L1) (L2) (L) (D) (F) EPSBC EPSBC200602U 0.6 0.7 2 50 4 2 EPSBC200603U 0.6 0.7 3 50 4 2 EPSBC200604U 0.6 0.7 4 50 4 2 EPSBC200605U 0.6 0.7 5 50 4 2 EPSBC200606U 0.6 0.7 6 50 4 2 EPSBC200608U 0.6 0.7 8 50 4 2 d EPSBC200610U 0.6 0.7 10 50 4 2 L1 EPSBC200612U 0.6 0.7 12 50 4 2 EPSBC200614U 0.6 0.7 14 50 4 2 L2 EPSBC200616U 0.6 0.7 16 50 4 2 EPSBC200702U 0.7 0.8 2 50 4 2 EPSBC200704U 0.7 0.8 4 50 4 2 EPSBC200706U 0.7 0.8 6 50 4 2 EPSBC200708U 0.7 0.8 8 50 4 2 L 15° EPSBC200710U 0.7 0.8 10 50 4 2 EPSBC200712U 0.7 0.8 12 50 4 2 EPSBC200802U 0.8 1.0 2 50 4 2 EPSBC200804U 0.8 1.0 4 50 4 2 EPSBC200806U 0.8 1.0 6 50 4 2 EPSBC200808U 0.8 1.0 8 50 4 2 EPSBC200810U 0.8 1.0 10 50 4 2 EPSBC200812U 0.8 1.0 12 50 4 2 D EPSBC200814U 0.8 1.0 14 50 4 2 EPSBC200906U 0.9 1.1 6 50 4 2 EPSBC200908U 0.9 1.1 8 50 4 2 EPSBC200910U 0.9 1.1 10 50 4 2 30° Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 034 ~ 036 d Tolerance Ø 0 ~ -0.02 SA106
