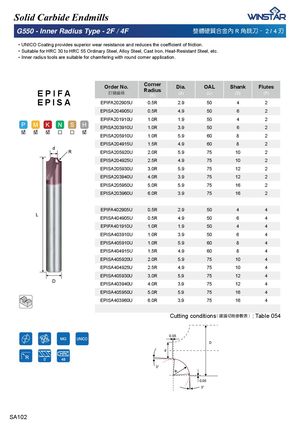

Каталог Winstar монолитный инструмент 2020 - страница 112

Solid Carbide Endmills G550 - Inner Radius Type - 2F / 4F 㜃汣䧻幹▗捠⋶ R 孡搠⎏ .!2 / 4 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚInner radius tools are suitable for chamfering with round corner application. EPIFA Order No. 宑庋佷䩋 CornerRadius(R) Dia.(d) OAL Shank Flutes(L)(D)(F) EPISA EPIFA202905U 0.5R 2.9 50 4 2 EPISA204905U 0.5R 4.9 50 6 2 EPIFA201910U 1.0R 1.9 50 4 2 EPISA203910U 1.0R 3.9 50 6 2 EPISA205910U 1.0R 5.9 60 8 2 EPISA204915U 1.5R 4.9 60 8 2 d R EPISA205920U 2.0R 5.9 75 10 2 EPISA204925U 2.5R 4.9 75 10 2 EPISA205930U 3.0R 5.9 75 12 2 EPISA203940U 4.0R 3.9 75 12 2 EPISA205950U 5.0R 5.9 75 16 2 EPISA203960U 6.0R 3.9 75 16 2 EPIFA402905U 0.5R 2.9 50 4 4 L EPISA404905U 0.5R 4.9 50 6 4 EPIFA401910U 1.0R 1.9 50 4 4 EPISA403910U 1.0R 3.9 50 6 4 EPISA405910U 1.0R 5.9 60 8 4 EPISA404915U 1.5R 4.9 60 8 4 EPISA405920U 2.0R 5.9 75 10 4 EPISA404925U 2.5R 4.9 75 10 4 EPISA405930U 3.0R 5.9 75 12 4 D EPISA403940U 4.0R 3.9 75 12 4 EPISA405950U 5.0R 5.9 75 16 4 EPISA403960U 6.0R 3.9 75 16 4 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 054 0.05 D d 3° 0.05 3° SA102
