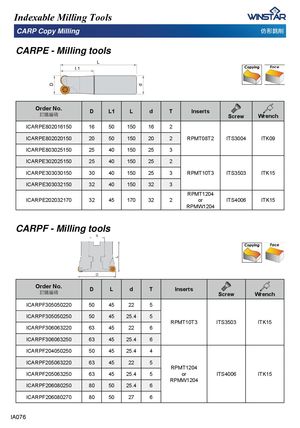

CARPE - Milling tools
| Order No. ���� | D | L1 | L | d | T | Inserts | Screw | Wrench |
| ICARPE802016150 | 16 | 50 | 150 | 16 | 2 | |||
| ICARPE802020150 | 20 | 50 | 150 | 20 | 2 | RPMT08T2 | ITS3004 | ITK09 |
| ICARPE803025150 | 25 | 40 | 150 | 25 | 3 | |||
| ICARPE302025150 | 25 | 40 | 150 | 25 | 2 | |||
| ICARPE303030150 | 30 | 40 | 150 | 25 | 3 | RPMT10T3 | ITS3503 | ITK15 |
| ICARPE303032150 | 32 | 40 | 150 | 32 | 3 | |||
| ICARPE202032170 | 32 | 45 | 170 | 32 | 2 | RPMT1204 or RPMW1204 | ITS4006 | ITK15 |
CARPF - Milling tools
| Order No. ���� | D | L | d | T | Inserts | Screw | Wrench |
| ICARPF305050220 | 50 | 45 | 22 | 5 | |||
| ICARPF305050250 | 50 | 45 | 25.4 | 5 | RPMT1T | ITS | ITK1 |
| ICARPF306063220 | 63 | 45 | 22 | 6 | 03 | 3503 | 5 |
| ICARPF306063250 | 63 | 45 | 25.4 | 6 | |||
| ICARPF204050250 | 50 | 45 | 25.4 | 4 | |||
| ICARPF205063220 | 63 | 45 | 22 | 5 | |||
| ICARPF205063250 | 63 | 45 | 25.4 | 5 | RPMT1204 or | ITS4006 | ITK15 |
| ICARPF206080250 | 80 | 50 | 25.4 | 6 | RPMW1204 | ||
| ICARPF206080270 | 80 | 50 | 27 | 6 |
