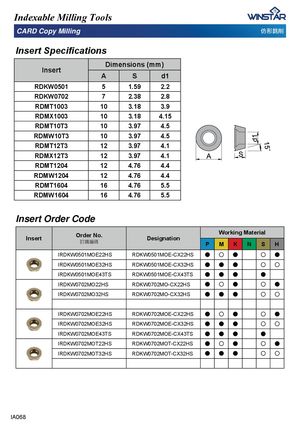

,QVHUW6SHFL¿FDWLRQV
| It | Dim | ensions ( | mm) |
| nser | A | S | d1 |
| RDKW0501 | 5 | 1.59 | 2.2 |
| RDKW0702 | 7 | 2.38 | 2.8 |
| RDMT1003 | 10 | 3.18 | 3.9 |
| RDMX1003 | 10 | 3.18 | 4.15 |
| RDMT10T3 | 10 | 3.97 | 4.5 |
| RDMW10T3 | 10 | 3.97 | 4.5 |
| RDMT12T3 | 12 | 3.97 | 4.1 |
| RDMX12T3 | 12 | 3.97 | 4.1 |
| RDMT1204 | 12 | 4.76 | 4.4 |
| RDMW1204 | 12 | 4.76 | 4.4 |
| RDMT1604 | 16 | 4.76 | 5.5 |
| RDMW1604 | 16 | 4.76 | 5.5 |
Insert Order Code
| Insert | Order No. ��� | Designation | Wo | rking | Mat | erial | ||
| � | P | M | K | N | S | H | ||
| IRDKW0501MOE22HS | RDKW0501MOE-CX22HS | � | � | � | � | � | ||
| IRDKW0501MOE32HS | RDKW0501MOE-CX32HS | � | � | � | � | � | ||
| IRDKW0501MOE43TS | RDKW0501MOE-CX43TS | � | � | � | � | |||
| IRDKW0702MO22HS | RDKW0702MO-CX22HS | � | � | � | � | � | ||
| IRDKW0702MO32HS | RDKW0702MO-CX32HS | � | � | � | � | � | ||
| IRDKW0702MOE22HS | RDKW0702MOE-CX22HS | � | � | � | � | � | ||
| IRDKW0702MOE32HS | RDKW0702MOE-CX32HS | � | � | � | � | � | ||
| IRDKW0702MOE43TS | RDKW0702MOE-CX43TS | � | � | � | � | |||
| IRDKW0702MOT22HS | RDKW0702MOT-CX22HS | � | � | � | � | � | ||
| IRDKW0702MOT32HS | RDKW0702MOT-CX32HS | � | � | � | � | � |
