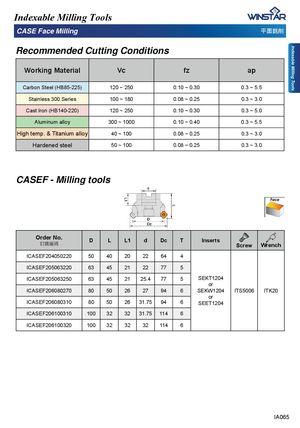

CASE Face Milling 。棱搠⏙
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 120 ~ 250 | 0.10 ~ 0.30 | 0.3 ~ 5.5 |
| Stainless 300 Series | 100 ~ 180 | 0.08 ~ 0.25 | 0.3 ~ 3.0 |
| Cast Iron (HB140-220) | 120 ~ 250 | 0.10 ~ 0.30 | 0.3 ~ 5.0 |
| Aluminum alloy | 300 ~ 1000 | 0.10 ~ 0.40 | 0.3 ~ 5.5 |
| High temp. & Titanium alloy | 40 ~ 100 | 0.08 ~ 0.25 | 0.3 ~ 3.0 |
| Hardened steel | 50 ~ 100 | 0.08 ~ 0.25 | 0.3 ~ 3.0 |
CASEF - Milling tools
| Order No. ���� | D | L | L1 | d | Dc | T | Inserts | Screw | Wrench |
| ICASEF204050220 | 50 | 40 | 20 | 22 | 64 | 4 | |||
| ICASEF205063220 | 63 | 45 | 21 | 22 | 77 | 5 | |||
| ICASEF205063250 | 63 | 45 | 21 | 25.4 | 77 | 5 | SEKT1204 | ||
| ICASEF206080270 | 80 | 50 | 26 | 27 | 94 | 6 | or SEKW1204 | ITS5006 | ITK20 |
| ICASEF206080310 | 80 | 50 | 26 | 31.75 | 94 | 6 | or SEET1204 | ||
| ICASEF206100310 | 100 | 32 | 32 | 31.75 | 114 | 6 | |||
| ICASEF206100320 | 100 | 32 | 32 | 32 | 114 | 6 |
