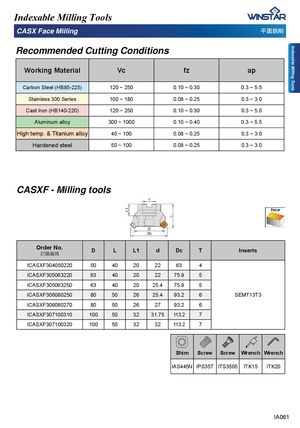

CASX Face Milling 。棱搠⏙
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 120 ~ 250 | 0.10 ~ 0.30 | 0.3 ~ 5.5 |
| Stainless 300 Series | 100 ~ 180 | 0.08 ~ 0.25 | 0.3 ~ 3.0 |
| Cast Iron (HB140-220) | 120 ~ 250 | 0.10 ~ 0.30 | 0.3 ~ 5.0 |
| Aluminum alloy | 300 ~ 1000 | 0.10 ~ 0.40 | 0.3 ~ 5.5 |
| High temp. & Titanium alloy | 40 ~ 100 | 0.08 ~ 0.25 | 0.3 ~ 3.0 |
| Hardened steel | 50 ~ 100 | 0.08 ~ 0.25 | 0.3 ~ 3.0 |
CASXF - Milling tools
| Order No. ���� | D | L | L1 | d | Dc | T | Inserts |
| ICASXF304050220 | 50 | 40 | 20 | 22 | 63 | 4 | |
| ICASXF305063220 | 63 | 40 | 20 | 22 | 75.9 | 5 | |
| ICASXF305063250 | 63 | 40 | 20 | 25.4 | 75.9 | 5 | |
| ICASXF306080250 | 80 | 50 | 26 | 25.4 | 93.2 | 6 | SEMT13T3 |
| ICASXF306080270 | 80 | 50 | 26 | 27 | 93.2 | 6 | |
| ICASXF307100310 | 100 | 50 | 32 | 31.75 | 113.2 | 7 | |
| ICASXF307100320 | 100 | 50 | 32 | 32 | 113.2 | 7 |
| Shim | Screw | Screw | Wrench | Wrench |
| IAS445N | IPS35T | ITS3505 | ITK15 | ITK20 |
