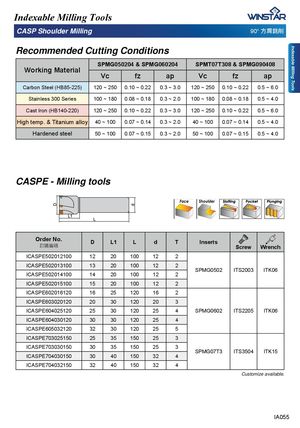

Recommended Cutting Conditions
| Wki Mtil | SPMG05 | 0204 & SPM | G060204 | SPMT07 | T308 & SPM | G090408 |
| orng aera | Vc | fz | ap | Vc | fz | ap |
| Carbon Steel (HB85-225) | 120 ~ 250 | 0.10 ~ 0.22 | 0.3 ~ 3.0 | 120 ~ 250 | 0.10 ~ 0.22 | 0.5 ~ 6.0 |
| Stainless 300 Series | 100 ~ 180 | 0.08 ~ 0.18 | 0.3 ~ 2.0 | 100 ~ 180 | 0.08 ~ 0.18 | 0.5 ~ 4.0 |
| Cast Iron (HB140-220) | 120 ~ 250 | 0.10 ~ 0.22 | 0.3 ~ 3.0 | 120 ~ 250 | 0.10 ~ 0.22 | 0.5 ~ 6.0 |
| High temp. & Titanium alloy | 40 ~ 100 | 0.07 ~ 0.14 | 0.3 ~ 2.0 | 40 ~ 100 | 0.07 ~ 0.14 | 0.5 ~ 4.0 |
| Hardened steel | 50 ~ 100 | 0.07 ~ 0.15 | 0.3 ~ 2.0 | 50 ~ 100 | 0.07 ~ 0.15 | 0.5 ~ 4.0 |
CASPE - Milling tools
| D L1 | L | d | ||||||
| Order No. ���� | D | L1 | L | d | T | Inserts | Screw | Wrench |
| ICASPE502012100 | 12 | 20 | 100 | 12 | 2 | |||
| ICASPE502013100 | 13 | 20 | 100 | 12 | 2 | |||
| ICASPE502014100 | 14 | 20 | 100 | 12 | 2 | SPMG0502 | ITS2003 | ITK06 |
| ICASPE502015100 | 15 | 20 | 100 | 12 | 2 | |||
| ICASPE602016120 | 16 | 25 | 120 | 16 | 2 | |||
| ICASPE603020120 | 20 | 30 | 120 | 20 | 3 | |||
| ICASPE604025120 | 25 | 30 | 120 | 25 | 4 | SPMG0602 | ITS2205 | ITK06 |
| ICASPE604030120 | 30 | 30 | 120 | 25 | 4 | |||
| ICASPE605032120 | 32 | 30 | 120 | 25 | 5 | |||
| ICASPE703025150 | 25 | 35 | 150 | 25 | 3 | |||
| ICASPE703030150 | 30 | 35 | 150 | 25 | 3 | |||
| ICASPE704030150 | 30 | 40 | 150 | 32 | 4 | SPMG07T3 | ITS3504 | ITK15 |
| ICASPE704032150 | 32 | 40 | 150 | 32 | 4 |
Customize available.
