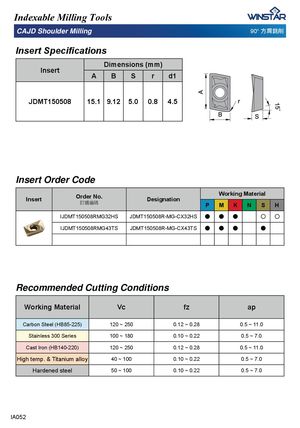

CAJD Shoulder Milling 90° 㝈券搠⏙
,QVHUW6SHFL¿FDWLRQV
| Insert | A | Dimen B | sions S | (mm) r | d1 |
| JDMT150508 | 15.1 | 9.12 | 5.0 | 0.8 | 4.5 |
Insert Order Code
| Insert | Order No. ���� | Designation | P | Wo M | rking M K N | aterial S | H |
| IJDMT150508RMG32HS | JDMT150508R-MG-CX32HS | � | � | � | � | � |
| IJDMT150508RMG43TS | JDMT150508R-MG-CX43TS | � | � | � | � | |
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 120 ~ 250 | 0.12 ~ 0.28 | 0.5 ~ 11.0 |
| Stainless 300 Series | 100 ~ 180 | 0.10 ~ 0.22 | 0.5 ~ 7.0 |
| Cast Iron (HB140-220) | 120 ~ 250 | 0.12 ~ 0.28 | 0.5 ~ 11.0 |
| High temp. & Titanium alloy | 40 ~ 100 | 0.10 ~ 0.22 | 0.5 ~ 7.0 |
| Hardened steel | 50 ~ 100 | 0.10 ~ 0.22 | 0.5 ~ 7.0 |
