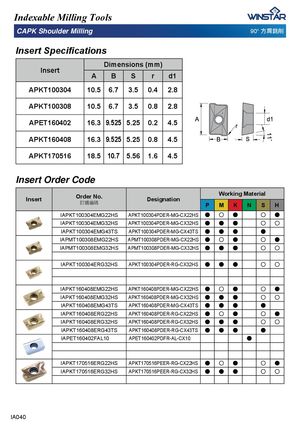

,QVHUW6SHFL¿FDWLRQV
| Insert | Dimen | sions | (mm) | ||
| A | B | S | r | d1 | |
| APKT100304 | 10.5 | 6.7 | 3.5 | 0.4 | 2.8 |
| APKT100308 | 10.5 | 6.7 | 3.5 | 0.8 | 2.8 |
| APET160402 | 16.3 | 9.525 | 5.25 | 0.2 | 4.5 |
| APKT160408 | 16.3 | 9.525 | 5.25 | 0.8 | 4.5 |
| APKT170516 | 18.5 | 10.7 | 5.56 | 1.6 | 4.5 |
Insert Order Code
| Insert | Order No. | Designation | Wo | rking | Mate | rial | ||
| ���� | P | M | K | N | S | H | ||
| IAPKT100304EMG22HS | APKT100304PDER-MG-CX22HS | � | � | � | � | � | ||
| IAPKT100304EMG32HS | APKT100304PDER-MG-CX32HS | � | � | � | � | � | ||
| IAPKT100304EMG43TS | APKT100304PDER-MG-CX43TS | � | � | � | � | |||
| IAPMT100308EMG22HS | APMT100308PDER-MG-CX22HS | � | � | � | � | � | ||
| IAPMT100308EMG32HS | APMT100308PDER-MG-CX32HS | � | � | � | � | � | ||
| IAPKT100304ERG32HS | APKT100304PDER-RG-CX32HS | � | � | � | � | � | ||
| IAPKT160408EMG22HS | APKT160408PDER-MG-CX22HS | � | � | � | � | � | ||
| IAPKT160408EMG32HS | APKT160408PDER-MG-CX32HS | � | � | � | � | � | ||
| IAPKT160408EMG43TS | APKT160408PDER-MG-CX43TS | � | � | � | � | |||
| IAPKT160408ERG22HS | APKT160408PDER-RG-CX22HS | � | � | � | � | � | ||
| IAPKT160408ERG32HS | APKT160408PDER-RG-CX32HS | � | � | � | � | � | ||
| IAPKT160408ERG43TS | APKT160408PDER-RG-CX43TS | � | � | � | � | |||
| IAPET160402FAL10 | APET160402PDFR-AL-CX10 | � | ||||||
| IAPKT170516ERG22HS | APKT170516PEER-RG-CX22HS | � | � | � | � | � | ||
| IAPKT170516ERG32HS | APKT170516PEER-RG-CX32HS | � | � | � | � | � |
