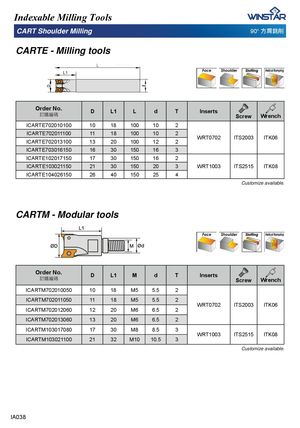

CARTE - Milling tools
| Order No. ���� | D | L1 | L | d | T | Inserts | Screw | Wrench |
| ICARTE702010100 | 10 | 18 | 100 | 10 | 2 | |||
| ICARTE702011100 | 11 | 18 | 100 | 10 | 2 | WRT0702 | ITS2003 | ITK06 |
| ICARTE702013100 | 13 | 20 | 100 | 12 | 2 | |||
| ICARTE703016150 | 16 | 30 | 150 | 16 | 3 | |||
| ICARTE102017150 | 17 | 30 | 150 | 16 | 2 | |||
| ICARTE103021150 | 21 | 30 | 150 | 20 | 3 | WRT1003 | ITS2515 | ITK08 |
| ICARTE104026150 | 26 | 40 | 150 | 25 | 4 |
Customize available.
CARTM - Modular tools
| Order No. ���� | D | L1 | M | d | T | Inserts | Screw | Wrench |
| ICARTM702010050 | 10 | 18 | M5 | 5.5 | 2 | |||
| ICARTM702011050 | 11 | 18 | M5 | 5.5 | 2 | WRT0702 | ITS2003 | ITK06 |
| ICARTM702012060 | 12 | 20 | M6 | 6.5 | 2 | |||
| ICARTM702013060 | 13 | 20 | M6 | 6.5 | 2 | |||
| ICARTM103017080 | 17 | 30 | M8 | 8.5 | 3 | WRT1003 | ITS21 | ITK08 |
| ICARTM103021100 | 21 | 32 | M10 | 10.5 | 3 | 55 |
Customize available.
