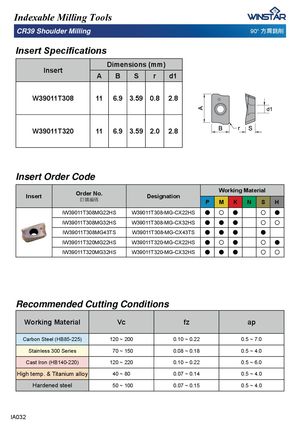

,QVHUW6SHFL¿FDWLRQV
| Insert | A | Dime B | nsions S | (mm r | ) d1 |
| W39011T308 | 11 | 6.9 | 3.59 | 0.8 | 2.8 |
| W39011T320 | 11 | 6.9 | 3.59 | 2.0 | 2.8 |
Insert Order Code
| It | Order No. | Diti | Wo | rking M | aterial | ||
| nser | ���� | esgnaon | P | M | K N | S | H |
| IW39011T308MG22HS | W39011T308-MG-CX22HS | � | � | � | � | � | |
| IW39011T308MG32HS | W39011T308-MG-CX32HS | � | � | � | � | � | |
| IW39011T308MG43TS | W39011T308-MG-CX43TS | � | � | � | � | ||
| IW39011T320MG22HS | W39011T320-MG-CX22HS | � | � | � | � | � | |
| IW39011T320MG32HS | W39011T320-MG-CX32HS | � | � | � | � | � |
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 120 ~ 200 | 0.10 ~ 0.22 | 0.5 ~ 7.0 |
| Stainless 300 Series | 70 ~ 150 | 0.08 ~ 0.18 | 0.5 ~ 4.0 |
| Cast Iron (HB140-220) | 120 ~ 220 | 0.10 ~ 0.22 | 0.5 ~ 6.0 |
| High temp. & Titanium alloy | 40 ~ 80 | 0.07 ~ 0.14 | 0.5 ~ 4.0 |
| Hardened steel | 50 ~ 100 | 0.07 ~ 0.15 | 0.5 ~ 4.0 |
