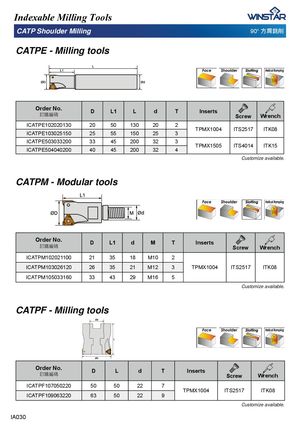

CATPE - Milling tools
| Order No. ���� | D | L1 | L | d | T | Inserts | Screw | Wrench |
| ICATPE102020130 | 20 | 50 | 130 | 20 | 2 | TPMX1004 | ITS2517 | ITK08 |
| ICATPE103025150 | 25 | 55 | 150 | 25 | 3 | |||
| ICATPE503033200 | 33 | 45 | 200 | 32 | 3 | TPMX1505 | ITS4014 | ITK15 |
| ICATPE504040200 | 40 | 45 | 200 | 32 | 4 |
Customize available.
CATPM - Modular tools
| Order No. ���� | D | L1 | d | M | T | Inserts | Screw | Wrench |
| ICATPM102021100 | 21 | 35 | 18 | M10 | 2 | |||
| ICATPM103026120 | 26 | 35 | 21 | M12 | 3 | TPMX1004 | ITS2517 | ITK08 |
| ICATPM105033160 | 33 | 43 | 29 | M16 | 5 |
Customize available.
CATPF - Milling tools
| Order No. ���� | D | L | d | T | Inserts | Screw | Wrench |
| ICATPF107050220 ICATPF109063220 | 50 63 | 50 50 | 22 22 | 7 9 | TPMX1004 | ITS2517 | ITK08 |
