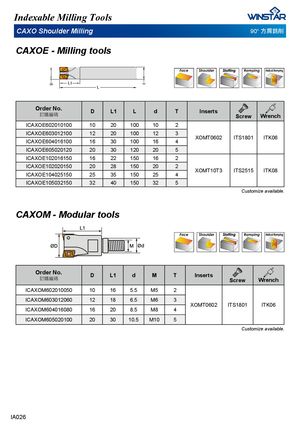

CAXO Shoulder Milling 90° 方肩銑削
CAXOE - Milling tools
| Order No. 訂購編碼 | D | L1 | L | d | T | Inserts | Screw | Wrench |
| ICAXOE602010100 | 10 | 20 | 100 | 10 | 2 | |||
| ICAXOE603012100 | 12 | 20 | 100 | 12 | 3 | XOMT0602 | ITS1801 | ITK06 |
| ICAXOE604016100 | 16 | 30 | 100 | 16 | 4 | |||
| ICAXOE605020120 | 20 | 30 | 120 | 20 | 5 | |||
| ICAXOE102016150 | 16 | 22 | 150 | 16 | 2 | |||
| ICAXOE102020150 | 20 | 28 | 150 | 20 | 2 | XOMT10T3 | ITS2515 | ITK08 |
| ICAXOE104025150 | 25 | 35 | 150 | 25 | 4 | |||
| ICAXOE105032150 | 32 | 40 | 150 | 32 | 5 |
Customize available.
CAXOM - Modular tools
| Order No. 訂購編碼 | D | L1 | d | M | T | Inserts | Screw | Wrench |
| ICAXOM602010050 | 10 | 16 | 5.5 | M5 | 2 | |||
| ICAXOM603012060 | 12 | 18 | 6.5 | M6 | 3 | |||
| ICAXOM604016080 | 16 | 20 | 8.5 | M8 | 4 | XOMT0602 | ITS1801 | ITK06 |
| ICAXOM605020100 | 20 | 30 | 10.5 | M10 | 5 |
Customize available.
