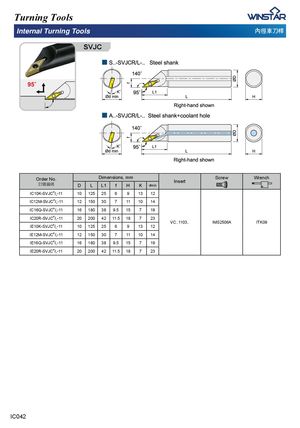

Каталог Winstar инструмент со сменными пластинами 2020 - страница 210

Turning Tools Internal Turning Tools ⋶ㄠ恙⎏㨎 SVJC Order No.宑庋佷䩋 Dimensions, mm InsertDLL1fHKdmin Screw Wrench IC10K-SVJCR/L-11 10 125 25 6 9 13 12 IC12M-SVJCR/L-11 12 150 30 7 11 10 14 IC16Q-SVJCR/L-11 16 180 38 9.5 15 7 19 IC20R-SVJCR/L-11 20 200 42 11.5 18 7 23 VC..1103.. IMS2506A ITK09 IE10K-SVJCR/L-11 10 125 25 6 9 13 12 IE12M-SVJCR/L-11 12 150 30 7 11 10 14 IE16Q-SVJCR/L-11 16 180 38 9.5 15 7 19 IE20R-SVJCR/L-11 20 200 42 11.5 18 7 23 IC042
