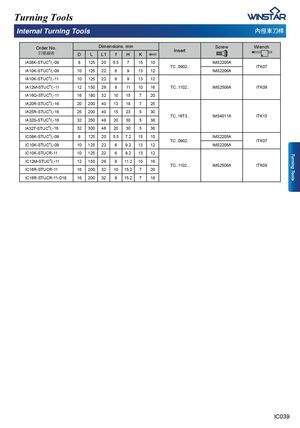

Каталог Winstar инструмент со сменными пластинами 2020 - страница 207

Turning Tools Turning Tools Internal Turning Tools ⋶ㄠ恙⎏㨎 Order No.宑庋佷䩋 Dimensions, mm InsertDLL1fHKdmin Screw Wrench IA08K-STUCR/L-09 8 125 20 5.5 7 15 10 TC..0902.. IMS2205A ITK07 IA10K-STUCR/L-09 10 125 22 6 9 13 12 IMS2206A IA10K-STUCR/L-11 10 125 22 6 9 13 12 IA12M-STUCR/L-11 12 150 26 8 11 10 16 TC..1102.. IMS2506A ITK09 IA16Q-STUCR/L-11 16 180 32 10 15 7 20 IA20R-STUCR/L-16 20 200 40 13 18 7 25 IA25R-STUCR/L-16 25 200 40 15 23 5 30 TC..16T3.. IMS4011A ITK15 IA32S-STUCR/L-16 32 250 48 20 30 5 38 IA32T-STUCR/L-16 32 300 48 20 30 5 38 IC08K-STUCR/L-09 8 125 20 5.5 7.2 15 10 TC..0902.. IMS2205A ITK07 IC10K-STUCR/L-09 10 125 22 6 9.2 13 12 IMS2206A IC10K-STUCR-11 10 125 22 6 9.2 13 12 IC12M-STUCR/L-11 12 150 26 8 11.2 10 16 TC..1102.. IMS2506A ITK09 IC16R-STUCR-11 16 200 32 10 15.2 7 20 IC16R-STUCR-11-D18 16 200 32 9 15.2 7 18 IC039
