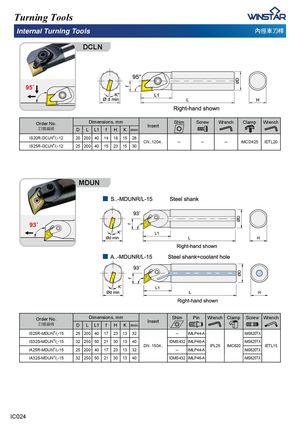

Каталог Winstar инструмент со сменными пластинами 2020 - страница 192

Turning Tools Internal Turning Tools ⋶ㄠ恙⎏㨎 DCLN Order No.宑庋佷䩋 Dimensions, mm Insert Shim Screw Wrench Clamp WrenchDLL1fHKdmin IS20R-DCLNR/L-12 20 200 40 14 18 15 28 CN..1204.. -- -- -- IMCD425 IETL20 IS25R-DCLNR/L-12 25 200 40 15 23 15 30 MDUN Order No.宑庋佷䩋 Dimensions, mm Insert Shim Pin Wrench Clamp Screw WrenchDLL1fHKdmin IS25R-MDUNR/L-15 25 200 40 17 23 13 32 -- IMLP44-A IMS620TX IS32S-MDUNR/L-15 32 250 50 21 30 13 40 IDMS432 IMLP46-A IMS625TXDN..1504..IPL25IMC620IETL15 IA25R-MDUNR/L-15 25 200 40 17 23 13 32 -- IMLP44-A IMS620TX IA32S-MDUNR/L-15 32 250 50 21 30 13 40 IDMS432 IMLP46-A IMS625TX IC024
