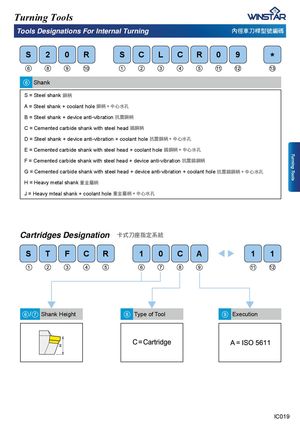

Turning Tools Turning Tools Tools Designations For Internal Turning ⋶ㄠ恙⎏㨎⤚埮佷䩋 S 2 0 R S C L C R 0 9 Shank S = Steel shank 撋㥓 A = Steel shank + coolant hole 撋㥓 , ᾼㅒ㷃ⳣ B = Steel shank + device anti-vibration 㐦梖撋㥓 C = Cemented carbide shank with steel head 攱撋㥓 D = Steel shank + device anti-vibration + coolant hole 㐦梖撋㥓 , ᾼㅒ㷃ⳣ E = Cemented carbide shank with steel head + coolant hole 攱撋㥓 , ᾼㅒ㷃ⳣ F = Cemented carbide shank with steel head + device anti-vibration 㐦梖攱撋㥓 G = Cemented carbide shank with steel head + device anti-vibration + coolant hole 㐦梖攱撋㥓 , ᾼㅒ㷃ⳣ H = Heavy metal shank 捜捠ⷻ㥓 J = Heavy mteal shank + coolant hole 捜捠ⷻ㥓 , ᾼㅒ㷃ⳣ Cartridges Designation !⓰ゞ⎏〶㒖⴩亊伀 S T F C R 1 0 C A 1 1 / Shank Height Type of Tool Execution IC019
