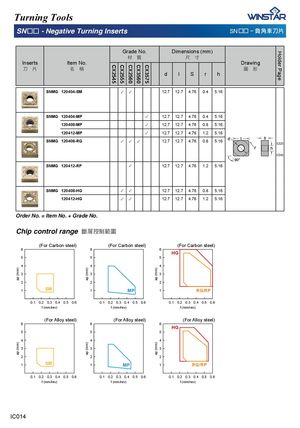

CX2545 CX2555 CX2560 CX3560 CX3575 Holder Page Turning Tools SNΩΩ - Negative Turning Inserts SNΩΩ . 帯孡恙⎏䏖 Grade No. Dimensions (mm) 㣟!!幹 ⷉ!!ⶇ Inserts Item No. Drawing ⎏!!䏖 ▜!!䯀 ⢥!!ヱ d l S r h SNMG 120404-SM ✓ ✓ 12.7 12.7 4.76 0.4 5.16 SNMG 120404-MP ✓ 12.7 12.7 4.76 0.4 5.16 120408-MP ✓ 12.7 12.7 4.76 0.8 5.16 120412-MP ✓ 12.7 12.7 4.76 1.2 5.16 SNMG 120408-RG ✓ ✓ ✓ 12.7 12.7 4.76 0.8 5.16 IC025 IC048 SNMG 120412-RP ✓ 12.7 12.7 4.76 1.2 5.16 SNMG 120408-HG ✓ ✓ 12.7 12.7 4.76 0.8 5.16 120412-HG ✓ ✓ 12.7 12.7 4.76 1.2 5.16 Order No. = Item No. + Grade No. Chip control range 㝆ⷠ㔶⏅䵓⢜ (For Carbon steel) (For Carbon steel) (For Carbon steel) 6 6 6 HG 5 5 5 4 4 4 3 3 3 2 2 2 1 SM 1 MP 1 RG/RP 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 f (mm/rev) f (mm/rev) f (mm/rev) (For Alloy steel) (For Alloy steel) (For Alloy steel) 6 6 6 HG 5 5 5 4 4 4 3 3 3 2 2 2 1 SM 1 MP 1 RG/RP 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 f (mm/rev) f (mm/rev) f (mm/rev) IC014 ap (mm)ap (mm) ap (mm)ap (mm) ap (mm)ap (mm)
