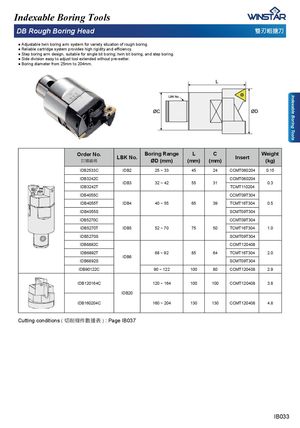

Indexable Boring Tools Indexable Boring Tools '%5RXJK%RULQJ+HDG 桨⎒並㖹⎏ Ɣ $GMXVWDEOHWZLQERULQJDUPV\VWHPIRUYDULHW\VLWXDWLRQRIURXJKERULQJ Ɣ 5HOLDEOHFDUWULGJHV\VWHPSURYLGHVKLJKULJLGLW\DQGHႈFLHQF\ Ɣ Step boring arm design, suitable for single bit boring, twin bit boring, and step boring. Ɣ 6LGHGLYLVLRQHDV\WRDGMXVWWRROH[WHQGHGZLWKRXWSUHVHWWHU Ɣ Boring diameter from 25mm to 204mm. Order No.宑庋佷䩋 LBK No. Boring RangeØD (mm) L(mm) C(mm) Insert Weight(kg) IDB2533C IDB2 25 ~ 33 45 24 CCMT060204 0.15 IDB3242C CCMT060204 IDB3 32 ~ 42 55 31 0.3 IDB3242T TCMT110204 IDB4055C CCMT09T304 IDB4055T IDB4 40 ~ 55 65 39 TCMT16T304 0.5 IDB4055S SCMT09T304 IDB5270C CCMT09T304 IDB5270T IDB5 52 ~ 70 75 50 TCMT16T304 1.0 IDB5270S SCMT09T304 IDB6892C CCMT120408 IDB6892T 68 ~ 92 85 64 TCMT16T304 2.0 IDB6 IDB6892S SCMT09T304 IDB90122C 90 ~ 122 100 80 CCMT120408 2.9 IDB120164C 120 ~ 164 100 100 CCMT120408 3.8 IDB20 IDB160204C 160 ~ 204 130 130 CCMT120408 4.8 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page IB037 IB033
