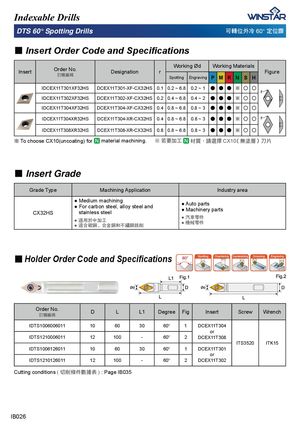

DTS 60° Spotting Drills ╾惘⃜⪥⍆ 60° ⃜昌
- ,QVHUW2UGHU&RGHDQG6SHFL¿FDWLRQV
| Insert | Order No. ���� | Designation | r | Worki Spotting | ng Ød Engraving | Worki P M | ng K | Mat N | eri S | als H | Figure |
| IDCEX11T301XF32HS | DCEX11T301-XF-CX32HS | 0.1 | 0.2 ~ 6.8 | 0.2 ~ 1 | �� | � | � | � | � | ||
| IDCEX11T302XF32HS | DCEX11T302-XF-CX32HS | 0.2 | 0.4 ~ 6.8 | 0.4 ~ 2 | �� | � | � | � | � | ||
| IDCEX11T304XF32HS | DCEX11T304-XF-CX32HS | 0.4 | 0.8 ~ 6.8 | 0.8 ~ 3 | �� | � | � | � | � | ||
| IDCEX11T304XR32HS | DCEX11T304-XR-CX32HS | 0.4 | 0.8 ~ 6.8 | 0.8 ~ 3 | �� | � | � | � | � | ||
| IDCEX11T308XR32HS | DCEX11T308-XR-CX32HS | 0.8 | 0.8 ~ 6.8 | 0.8 ~ 3 | �� | � | � | � | � |
ʰ To choose CX10(uncoating) for material machining. ʰ 呴嬐⽴ 㣟幹虇屚戇㙖 CX10) 䊰⧦ⷳ * ⎏䏖
- Insert Grade
| Grade Type | Machining Application | Industry area |
| CX32HS | �Medium machining �For carbon steel, alloy steel and stainless steel �������� ���������������� | �Auto parts �Machinery parts ������ ������ |
- +ROGHU2UGHU&RGHDQG6SHFL¿FDWLRQV
| Order No. ���� | D | L | L1 | Degree | Fig | Insert | Screw | Wrench |
| IDTS1006006011 | 10 | 60 | 30 | 60° | 1 | DCEX11T304 | ||
| IDTS1210006011 | 12 | 100 | - | 60° | 2 | or DCEX11T308 | ||
| IDTS1006126011 | 10 | 60 | 30 | 60° | 1 | DCEX11T301 | ITS3520 | ITK15 |
| IDTS1210126011 | 12 | 100 | - | 60° | 2 | or DCEX11T302 |
Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page IB035
