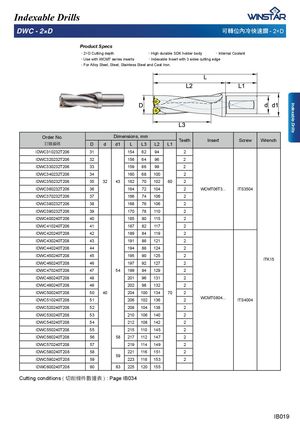

3URGXFW6SHFV
虉2×D Cutting depth 虉High durable SDK holder body 虉Internal Coolant
虉Use with WCMT series inserts 虉Indexable Insert with 3 sides cutting edge 虉For Alloy Steel, Steel, Stainless Steel and Cast Iron. L
Order No. Dimensions, mm
Teeth Insert Screw Wrench
| 宑庋佷䩋 D | d1 d L | L3 | L2 | L1 | |
| IDWC310232T206 | 31 | 154 | 62 | 94 | 2 |
| IDWC320232T206 | 32 | 156 | 64 | 96 | 2 |
| IDWC330232T206 | 33 | 159 | 66 | 99 | 2 |
| IDWC340232T206 | 34 | 160 | 68 | 100 | 2 |
| IDWC350232T206 | 35 | 43 32 162 | 70 | 102 | 60 2 |
| IDWC360232T206 | 36 | 164 | 72 | 104 | ITS3504 WCMT06T3... 2 |
| IDWC370232T206 | 37 | 166 | 74 | 106 | 2 |
| IDWC380232T206 | 38 | 168 | 76 | 106 | 2 |
| IDWC390232T206 | 39 | 170 | 78 | 110 | 2 |
| IDWC400240T206 | 40 | 185 | 80 | 115 | 2 |
| IDWC410240T206 | 41 | 187 | 82 | 117 | 2 |
| IDWC420240T208 | 42 | 189 | 84 | 119 | 2 |
| IDWC430240T208 | 43 | 191 | 86 | 121 | 2 |
| IDWC440240T208 | 44 | 194 | 88 | 124 | 2 |
| IDWC450240T208 | 45 | 195 | 90 | 125 | 2 |
| ITK15 | |||||
| IDWC460240T208 | 46 | 197 | 92 | 127 | 2 |
| IDWC470240T208 | 47 | 54 199 | 94 | 129 | 2 |
| IDWC480240T208 | 48 | 201 | 96 | 131 | 2 |
| IDWC490240T208 | 49 | 202 | 98 | 132 | 2 |
| IDWC500240T208 | 50 | 40 204 | 100 | 134 | 70 2 |
| WCMT0804... | |||||
| IDWC510240T208 | 51 | 206 | 102 | 136 | ITS4004 2 |
| IDWC520240T208 | 52 | 208 | 104 | 138 | 2 |
| IDWC530240T208 | 53 | 210 | 106 | 140 | 2 |
| IDWC540240T208 | 54 | 212 | 108 | 142 | 2 |
| IDWC550240T208 | 55 | 215 | 110 | 145 | 2 |
| IDWC560240T208 | 56 | 58 217 | 112 | 147 | 2 |
| IDWC570240T208 | 57 | 219 | 114 | 149 | 2 |
| IDWC580240T208 | 58 | 221 | 116 | 151 | 2 |
| 59 | |||||
| IDWC590240T208 | 59 | 223 | 118 | 153 | 2 |
| IDWC600240T208 | 60 | 63 225 | 120 | 155 |
Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page IB034
