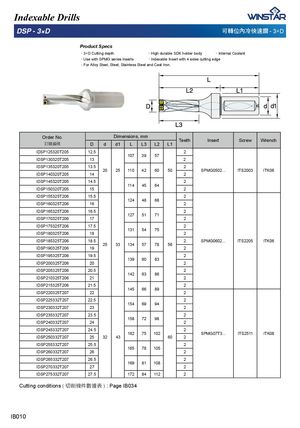

Каталог Winstar инструмент со сменными пластинами 2020 - страница 136

Indexable Drills DSP - 3×D ╾惘⃜⋶⍆ㅺ憮昌 - 3×D 3URGXFW6SHFV 虉3×D Cutting depth 虉High durable SDK holder body 虉Internal Coolant 虉Use with SPMG series inserts 虉Indexable Insert with 4 sides cutting edge 虉For Alloy Steel, Steel, Stainless Steel and Cast Iron. Order No. Dimensions, mm Teeth Insert Screw Wrench 宑庋佷䩋 D d d1 L L3 L2 L1 IDSP125320T205 12.5 2 107 39 57 IDSP130320T205 13 2 IDSP135320T205 13.5 2 20 25 110 42 60 50 SPMG0502... ITS2003 ITK06 IDSP140320T205 14 2 IDSP145320T205 14.5 2 114 45 64 IDSP150320T205 15 2 IDSP155325T206 15.5 2 124 48 68 IDSP160325T206 16 2 IDSP165325T206 16.5 2 127 51 71 IDSP170325T206 17 2 IDSP175325T206 17.5 2 131 54 75 IDSP180325T206 18 2 IDSP185325T206 18.5 2 SPMG0602... ITS2205 ITK06 25 33 134 57 78 56 IDSP190325T206 19 2 IDSP195325T206 19.5 2 139 60 83 IDSP200325T206 20 2 IDSP205325T206 20.5 2 142 63 86 IDSP210325T206 21 2 IDSP215325T206 21.5 2 145 66 89 IDSP220325T207 22 2 IDSP225332T207 22.5 2 154 69 94 IDSP230332T207 23 2 IDSP235332T207 23.5 2 158 72 98 IDSP240332T207 24 2 IDSP245332T207 24.5 2 162 75 102 SPMG07T3... ITS2511 ITK08 IDSP250332T207 25 32 43 60 2 IDSP255332T207 25.5 2 165 78 105 IDSP260332T207 26 2 IDSP265332T207 26.5 2 169 81 108 IDSP270332T207 27 2 IDSP275332T207 27.5 172 84 112 2 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page IB034 IB010
