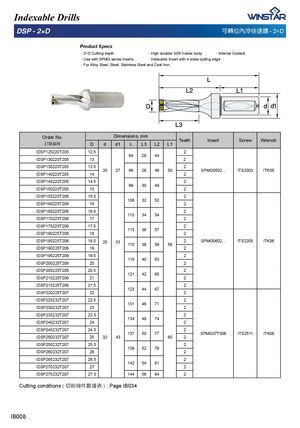

Каталог Winstar инструмент со сменными пластинами 2020 - страница 134

Indexable Drills DSP - 2×D ╾惘⃜⋶⍆ㅺ憮昌 - 2×D 3URGXFW6SHFV 虉2×D Cutting depth 虉High durable SDK holder body 虉Internal Coolant 虉Use with SPMG series inserts 虉Indexable Insert with 4 sides cutting edge 虉For Alloy Steel, Steel, Stainless Steel and Cast Iron. Order No. Dimensions, mm Teeth Insert Screw Wrench 宑庋佷䩋 D d d1 L L3 L2 L1 IDSP125220T205 12.5 2 94 26 44 IDSP130220T205 13 2 IDSP135220T205 13.5 2 20 27 96 28 46 50 SPMG0502... ITS2003 ITK06 IDSP140220T205 14 2 IDSP145220T205 14.5 2 99 30 49 IDSP150220T205 15 2 IDSP155225T206 15.5 2 108 32 52 IDSP160225T206 16 2 IDSP165225T206 16.5 2 110 34 54 IDSP170225T206 17 2 IDSP175225T206 17.5 2 113 36 57 IDSP180225T206 18 2 IDSP185225T206 18.5 25 33 115 38 59 56 2 SPMG0602... ITS2205 ITK06 IDSP190225T206 19 2 IDSP195225T206 19.5 2 119 40 63 IDSP200225T206 20 2 IDSP205225T206 20.5 2 121 42 65 IDSP210225T206 21 2 IDSP215225T206 21.5 2 123 44 67 IDSP220225T207 22 2 IDSP225232T207 22.5 2 131 46 71 IDSP230232T207 23 2 IDSP235232T207 23.5 2 134 48 74 IDSP240232T207 24 2 IDSP245232T207 24.5 2 137 50 77 SPMG07T308 ITS2511 ITK08 IDSP250232T207 25 32 43 60 2 IDSP255232T207 25.5 2 139 52 79 IDSP260232T207 26 2 IDSP265232T207 26.5 2 142 54 81 IDSP270232T207 27 2 IDSP275232T207 27.5 144 56 84 2 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page IB034 IB008
