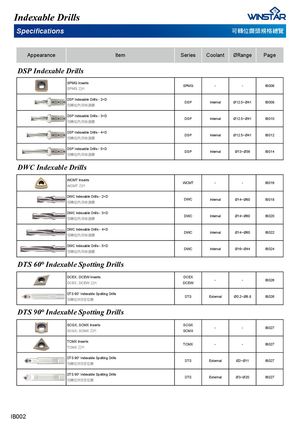

Specifications 可轉位鑽頭規格總覽
Appearance Item Series Coolant ØRange Page
DSP Indexable Drills
| SPMG Inserts SPMG刀片 |
| DSP Indexable Drills- 2×D |
| 可轉位內冷快速鑽 |
| DSP Indexable Drills- 3×D |
| 可轉位內冷快速鑽 |
| DSP Indexable Drills- 4×D |
| 可轉位內冷快速鑽 |
| DSP Indexable Drills- 5×D 可轉位內冷快速鑽 |
| SPMG | - | - | IB006 |
| DSP | Internal | Ø12.5~Ø41 | IB008 |
| DSP | Internal | Ø12.5~Ø41 | IB010 |
| DSP | Internal | Ø12.5~Ø41 | IB012 |
| DSP | Internal | Ø13~Ø36 | IB014 |
DWC Indexable Drills
| WCMT Inserts WCMT刀片 |
| DWC Indexable Drills- 2×D |
| 可轉位內冷快速鑽 |
| DWC Indexable Drills- 3×D 可轉位內冷快速鑽 |
| DWC Indexable Drills- 4×D |
| 可轉位內冷快速鑽 |
| DWC Indexable Drills- 5×D 可轉位內冷快速鑽 |
| WCMT | - | - | IB016 |
| DWC | Internal | Ø14~Ø60 | IB018 |
| DWC | Internal | Ø14~Ø60 | IB020 |
| DWC | Internal | Ø14~Ø60 | IB022 |
| DWC | Internal | Ø16~Ø44 | IB024 |
DTS 60° Indexable Spotting Drills
| DCEX, DCEW Inserts DCEX, DCEW刀片 | DCEX DCEW | - | - | IB026 |
| DTS 60° Indexable Spotting Drills 可轉位外冷定位鑽 | DTS | External | Ø0.2~Ø6.8 | IB026 |
DTS 90° Indexable Spotting Drills
| SCGX, SCMX Inserts SCGX, SCMX刀片 | SCGX SCMX | - | - | IB027 |
| TCMX Inserts TCMX刀片 | TCMX | - | - | IB027 |
| DTS 90° Indexable Spotting Drills 可轉位外冷定位鑽 | DTS | External | Ø2~Ø11 | IB027 |
| DTS 90° Indexable Spotting Drills 可轉位外冷定位鑽 | DTS | External | Ø3~Ø20 | IB027 |
