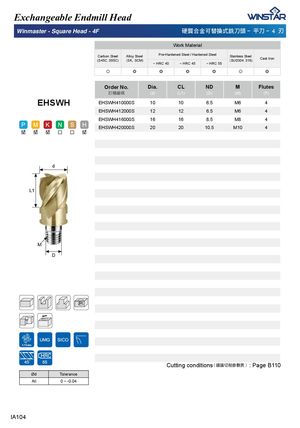

Каталог Winstar инструмент со сменными пластинами 2020 - страница 114

Exchangeable Endmill Head Winmaster - Square Head - 4F 䧻幹▗捠╾㢎㕪ゞ搠⎏榼 .!。⎏ .!4!⎒ Work Material Carbon Steel Alloy Steel(S45C, S55C))SKSCM)Pre-Hardened Steel / Hardened Steel~ HRC 40~ HRC 45~ HRC 55Stainless Steel)SUS304, 316)Cast Iron ΰ α α α α ΰ α Order No. Dia. CL ND M Flutes 宑庋佷䩋 (d) (L1) (D) (M) (F) EHSWH EHSWH410000S 10 10 6.5 M6 4 EHSWH412000S 12 12 6.5 M6 4 EHSWH416000S 16 16 8.5 M8 4 EHSWH420000S 20 20 10.5 M10 4 d L1 M D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Page B110 Ød Tolerance All 0 ~ -0.04 IA104
