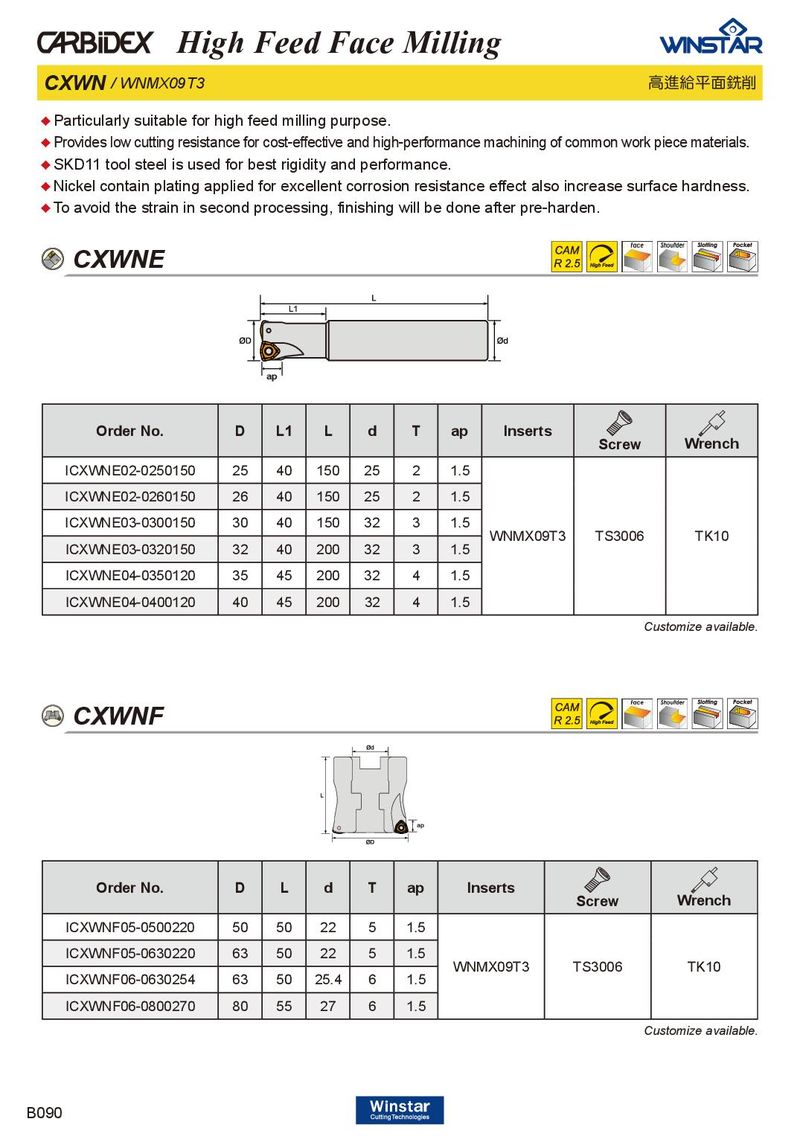

High Feed Face Milling CXWN / WNMX09T3 高進給平面銑削 ♦ Particularly suitable for high feed milling purpose. ♦ Provides low cutting resistance for cost-effective and high-performance machining of common work piece materials. ♦ SKD11 tool steel is used for best rigidity and performance. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. CXWNE ap Order No. D L1 L d T ap Inserts Screw Wrench ICXWNE02-0250150 25 40 150 25 2 1.5 ICXWNE02-0260150 26 40 150 25 2 1.5 ICXWNE03-0300150 30 40 150 32 3 1.5 WNMX09T3 TS3006 TK10 ICXWNE03-0320150 32 40 200 32 3 1.5 ICXWNE04-0350120 35 45 200 32 4 1.5 ICXWNE04-0400120 40 45 200 32 4 1.5 Customize available. CXWNF ap Order No. D L d T ap Inserts Screw Wrench ICXWNF05-0500220 50 50 22 5 1.5 ICXWNF05-0630220 63 50 22 5 1.5 WNMX09T3 TS3006 TK10 ICXWNF06-0630254 63 50 25.4 6 1.5 ICXWNF06-0800270 80 55 27 6 1.5 Customize available. B090
