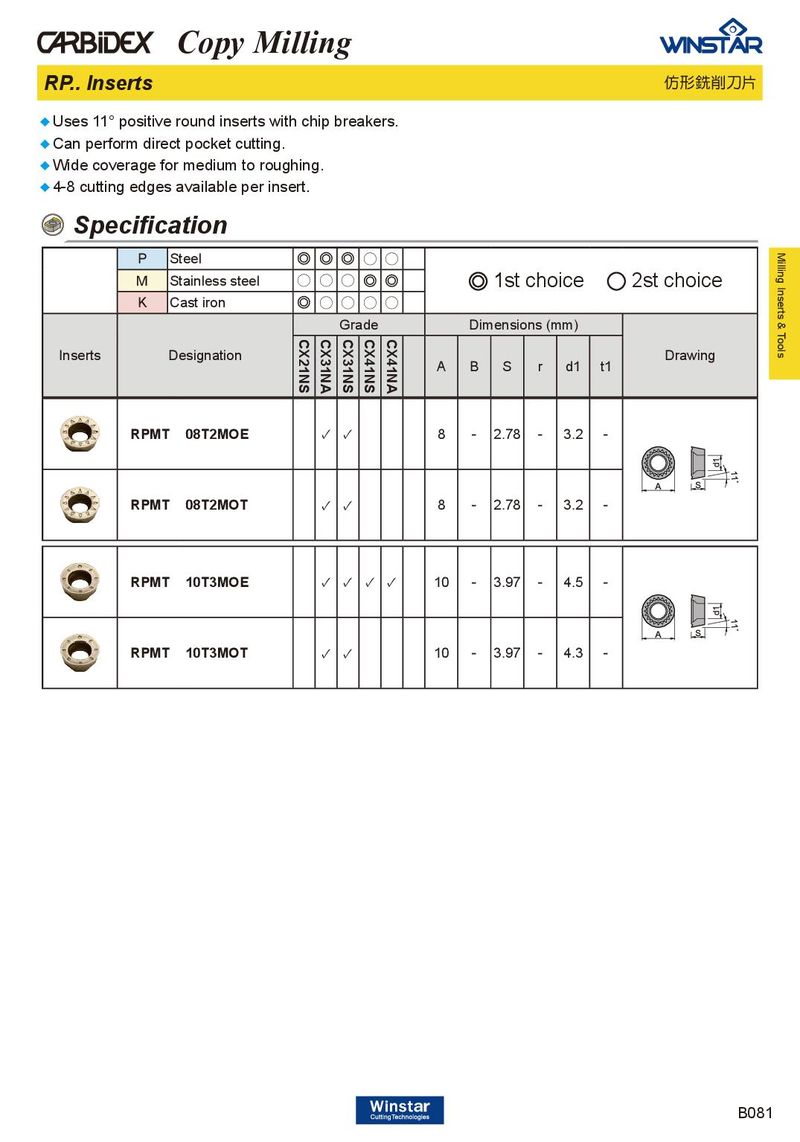

Copy Milling RP.. Inserts 仿形銑削刀片 ♦ Uses 11° positive round inserts with chip breakers. ♦ Can perform direct pocket cutting. ♦ Wide coverage for medium to roughing. ♦ 4-8 cutting edges available per insert. Specification Milling Inserts & Tools P Steel ◎ ◎ ◎ ○ ○ M Stainless steel ○ ○ ○ ◎ ◎ 1st choice 2st choice K Cast iron ◎ ○ ○ ○ ○ Grade Dimensions (mm) CX21NS CX31NA CX31NS CX41NS CX41NA Inserts Designation Drawing A B S r d1 t1 RPMT 08T2MOE ✓ ✓ 8 - 2.78 - 3.2 - RPMT 08T2MOT ✓ ✓ 8 - 2.78 - 3.2 - RPMT 10T3MOE ✓ ✓ ✓ ✓ 10 - 3.97 - 4.5 - RPMT 10T3MOT ✓ ✓ 10 - 3.97 - 4.3 - B081
