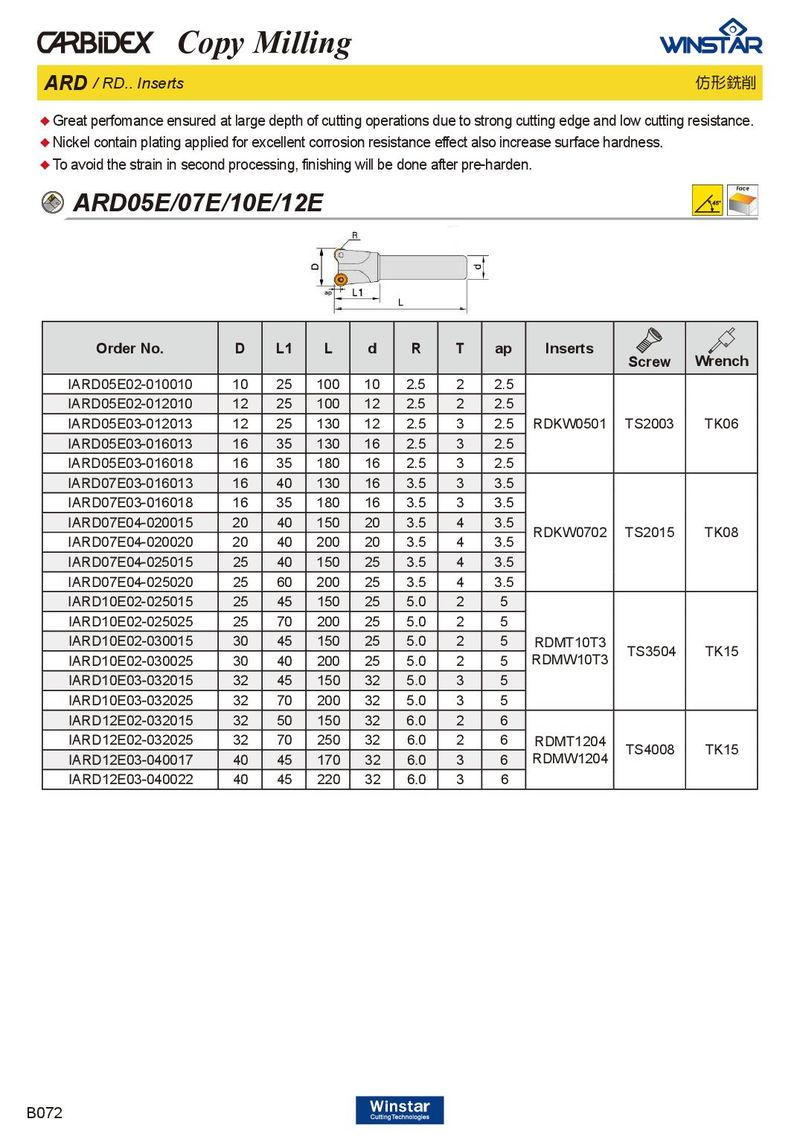

Copy Milling ARD / RD.. Inserts 仿形銑削 ♦ Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. ARD05E/07E/10E/12E ap Order No. D L1 L d R T ap Inserts Screw Wrench IARD05E02-010010 10 25 100 10 2.5 2 2.5 IARD05E02-012010 12 25 100 12 2.5 2 2.5 IARD05E03-012013 12 25 130 12 2.5 3 2.5 RDKW0501 TS2003 TK06 IARD05E03-016013 16 35 130 16 2.5 3 2.5 IARD05E03-016018 16 35 180 16 2.5 3 2.5 IARD07E03-016013 16 40 130 16 3.5 3 3.5 IARD07E03-016018 16 35 180 16 3.5 3 3.5 IARD07E04-020015 20 40 150 20 3.5 4 3.5 RDKW0702 TS2015 TK08 IARD07E04-020020 20 40 200 20 3.5 4 3.5 IARD07E04-025015 25 40 150 25 3.5 4 3.5 IARD07E04-025020 25 60 200 25 3.5 4 3.5 IARD10E02-025015 25 45 150 25 5.0 2 5 IARD10E02-025025 25 70 200 25 5.0 2 5 IARD10E02-030015 30 45 150 25 5.0 2 5 RDMT10T3 TS3504 TK15 IARD10E02-030025 30 40 200 25 5.0 2 5 RDMW10T3 IARD10E03-032015 32 45 150 32 5.0 3 5 IARD10E03-032025 32 70 200 32 5.0 3 5 IARD12E02-032015 32 50 150 32 6.0 2 6 IARD12E02-032025 32 70 250 32 6.0 2 6 RDMT1204 TS4008 TK15 IARD12E03-040017 40 45 170 32 6.0 3 6 RDMW1204 IARD12E03-040022 40 45 220 32 6.0 3 6 B072
