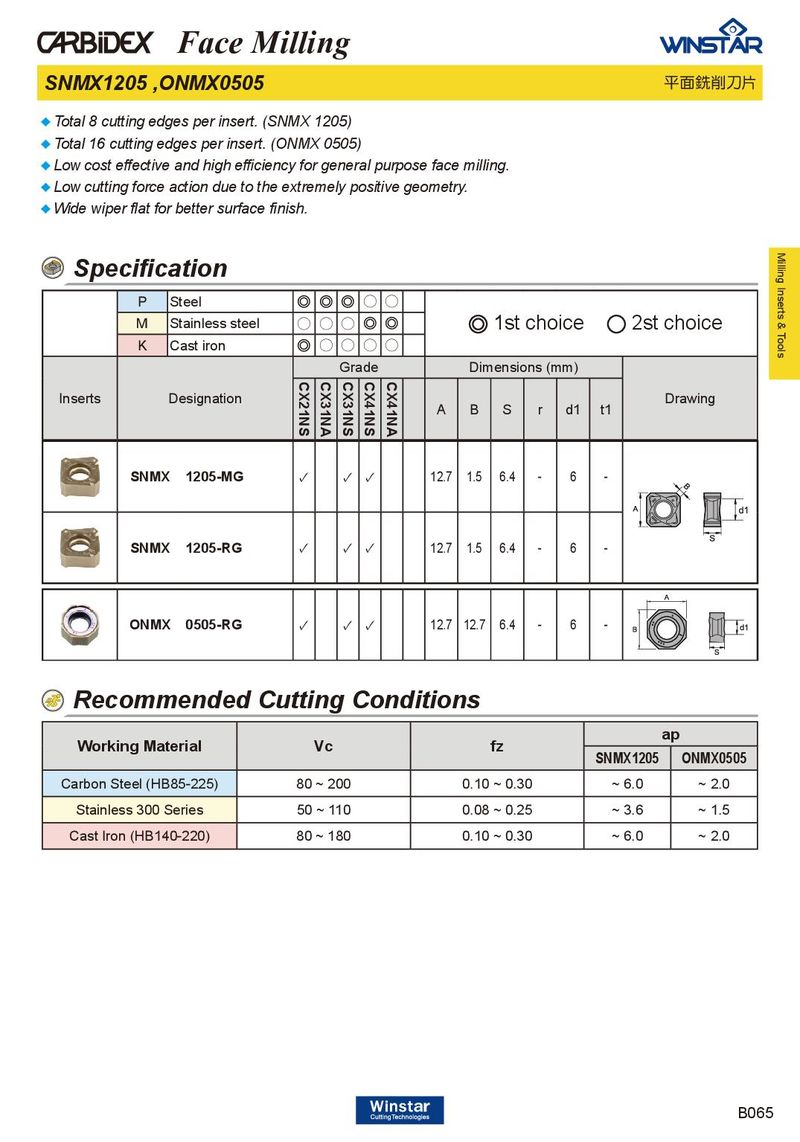

Face Milling SNMX1205 ,ONMX0505 平面銑削刀片 ♦ Total 8 cutting edges per insert. (SNMX 1205) ♦ Total 16 cutting edges per insert. (ONMX 0505) ♦ Low cost effective and high efficiency for general purpose face milling. ♦ Low cutting force action due to the extremely positive geometry. ♦ Wide wiper flat for better surface finish. Milling Inserts & Tools Specification P Steel ◎ ◎ ◎ ○ ○ M Stainless steel ○ ○ ○ ◎ ◎ 1st choice 2st choice K Cast iron ◎ ○ ○ ○ ○ Grade Dimensions (mm) CX21NS CX31NA CX31NS CX41NS CX41NA Inserts Designation Drawing A B S r d1 t1 SNMX 1205-MG ✓ ✓ ✓ 12.7 1.5 6.4 - 6 - SNMX 1205-RG ✓ ✓ ✓ 12.7 1.5 6.4 - 6 - ONMX 0505-RG ✓ ✓ ✓ 12.7 12.7 6.4 - 6 - Recommended Cutting Conditions ap Working Material Vc fz SNMX1205 ONMX0505 Carbon Steel (HB85-225) 80 ~ 200 0.10 ~ 0.30 ~ 6.0 ~ 2.0 Stainless 300 Series 50 ~ 110 0.08 ~ 0.25 ~ 3.6 ~ 1.5 Cast Iron (HB140-220) 80 ~ 180 0.10 ~ 0.30 ~ 6.0 ~ 2.0 B065
