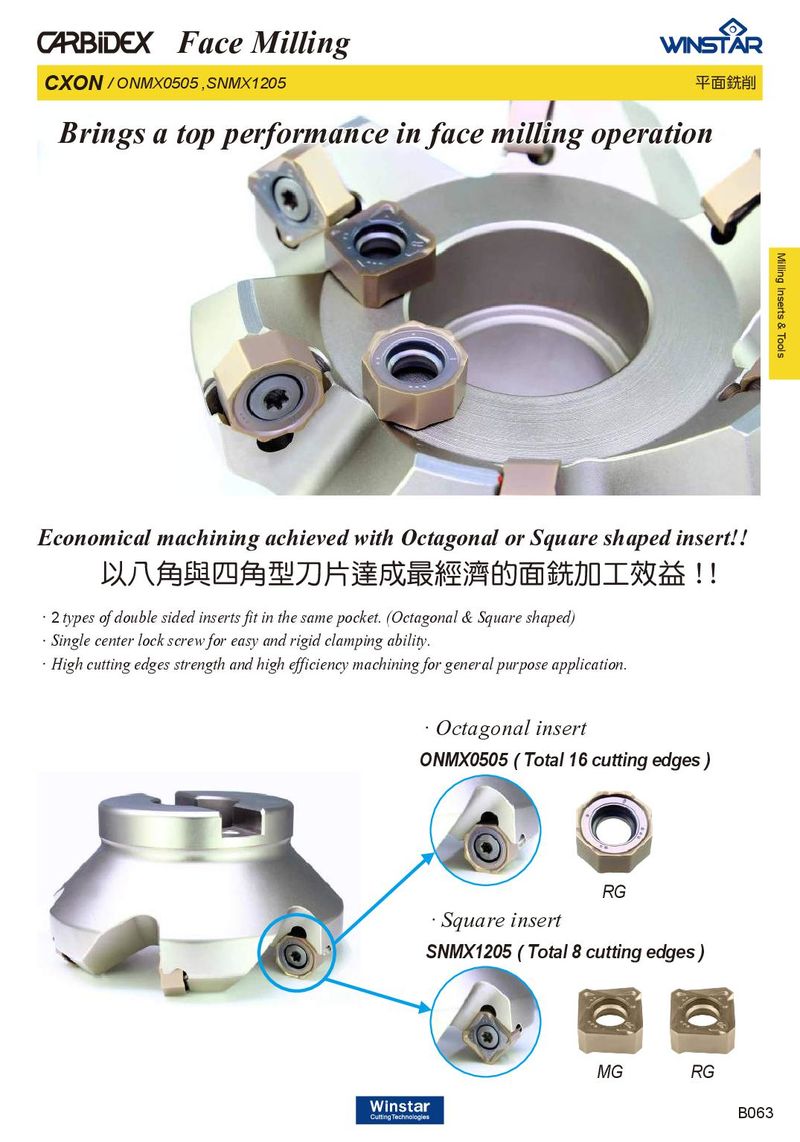

CXON / ONMX0505 ,SNMX1205 平面銑削

Brings a top performance in face milling operation

Economical machining achieved with Octagonal or Square shaped insert!!

以八角與四角型刀片達成最經濟的面銑加工效益 !!

2types of double sided inserts fit in the same pocket. (Octagonal & Square shaped)

Single center lock screw for easy and rigid clamping ability. High cutting edges strength and high efficiency machining for general purpose application.

Octagonal insert

ONMX0505 ( Total 16 cutting edges )

RG

Square insert

SNMX1205 ( Total 8 cutting edges )

MG RG
