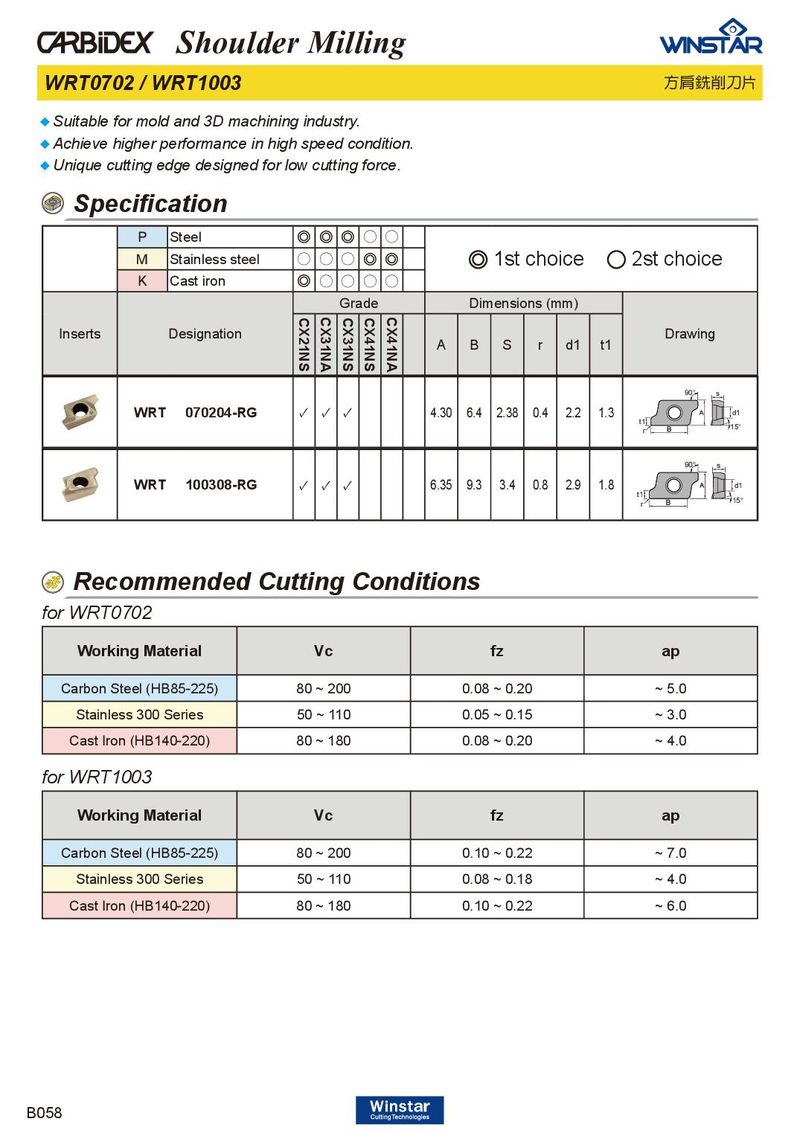

WRT0702 / WRT1003 方肩銑削刀片

  • Suitable for mold and 3D machining industry.
  • Achieve higher performance in high speed condition.
  • Unique cutting edge designed for low cutting force. Specification
PSteel◎◎◎○○
MStainless steel○○○◎◎1stchoice2st choice
InsertsKCast iron Designation◎ CX21NS○ CX31NA○ Gr CX31NS○ ade CX41NS○ CX41NAADim Bensio Sns( rmm) d1t1Drawing
WRT070204-RG✓✓✓4.306.42.380.42.21.3s d1 15° r t1 90°
WRT100308-RG✓✓✓6.359.33.40.82.91.8s d1 15° r t1 90°

Recommended Cutting Conditions

for WRT0702

Working MaterialVcfzap
Carbon Steel (HB85-225)80 ~ 2000.08 ~ 0.20~ 5.0
Stainless 300 Series50 ~ 1100.05 ~ 0.15~ 3.0
Cast Iron (HB140-220)80 ~ 1800.08 ~ 0.20~ 4.0

for WRT1003

Working MaterialVcfzap
Carbon Steel (HB85-225)80 ~ 2000.10 ~ 0.22~ 7.0
Stainless 300 Series50 ~ 1100.08 ~ 0.18~ 4.0
Cast Iron (HB140-220)80 ~ 1800.10 ~ 0.22~ 6.0
