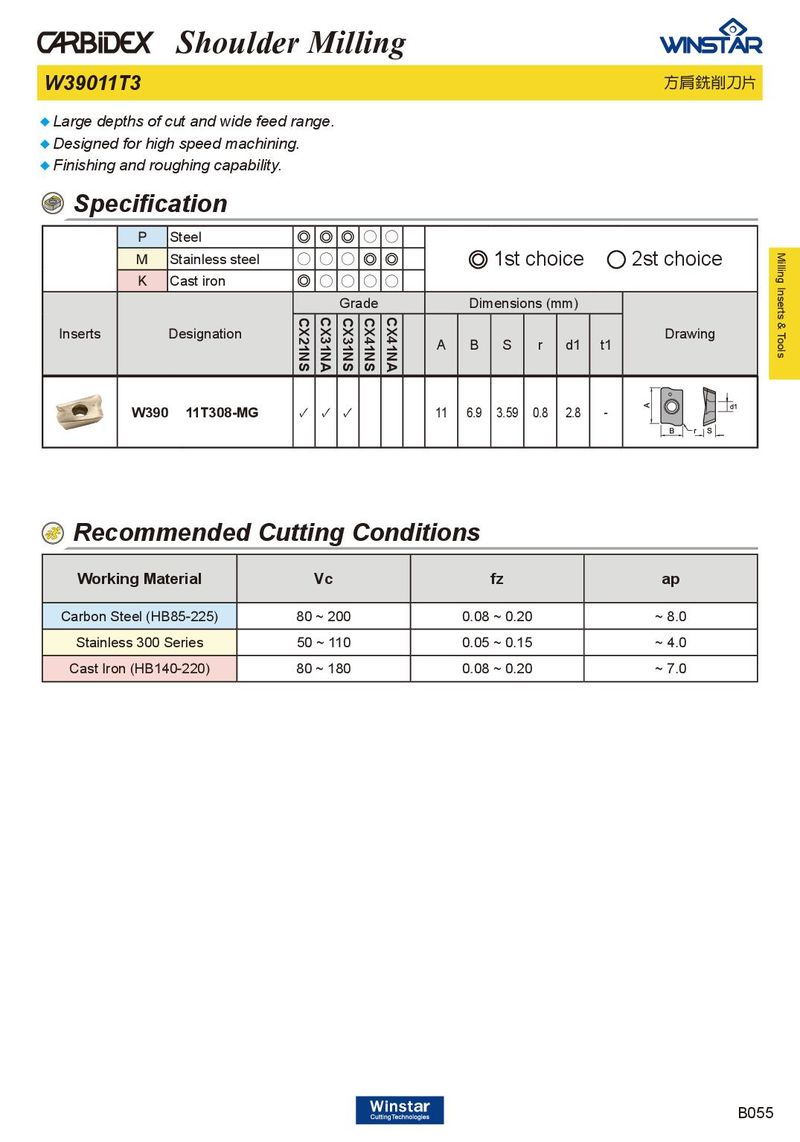

W39011T3 方肩銑削刀片

  • Large depths of cut and wide feed range.
  • Designed for high speed machining.
  • Finishing and roughing capability. Specification
PSteel◎ ◎ ◎○ ○
MStainless steel1st choice2st choice
KCast iron◎○ ○ ○ ○
GradeDimensions (mm)

Inserts Designation Drawing

ABSrd1t1
W390 11T308-MG✓ ✓ ✓116.9 3.59 0.8 2.8-

Recommended Cutting Conditions

Working MaterialVcfzap
Carbon Steel (HB85-225)80 ~ 2000.08 ~ 0.20~ 8.0
Stainless 300 Series50 ~ 1100.05 ~ 0.15~ 4.0
Cast Iron (HB140-220)80 ~ 1800.08 ~ 0.20~ 7.0
