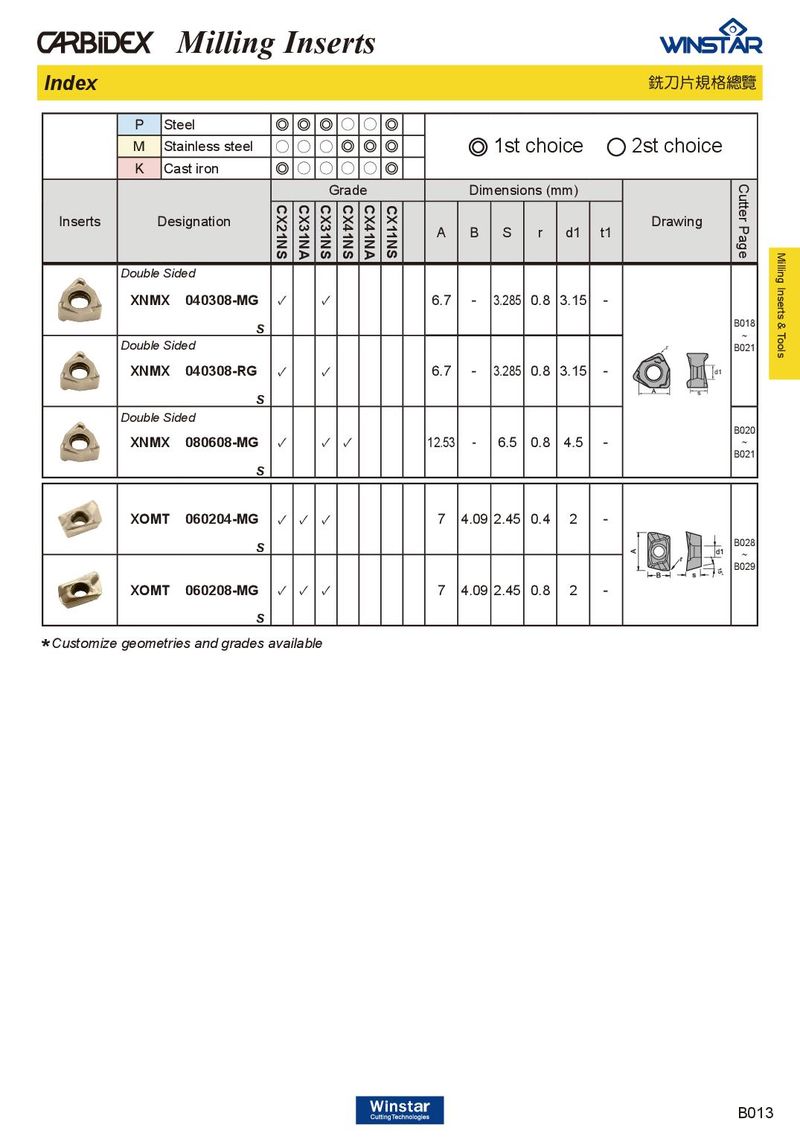

| Index | 銑刀 | 片規格 | 總覽 | ||||||||||||||
| P S M S | teel tainless steel | ◎ ○ | ◎ ○ | ◎ ○ | ○ ◎ | ○ ◎ | ◎ ◎ | 1st | cho | ice | 2st c | hoice | |||||
| K C | ast iron | ◎ | ○ | ○ | ○ | ○ | ◎ | ||||||||||
| Inserts | De | signation | CX21NS | CX31NA | CX31NS | Grad CX41NS | e CX41NA | CX11NS | A | Dim B | ensio S | ns( r | mm) d1 | t1 | Dra | wing | Cutter Page |
| XNMX Double Si | 040308-MG ded S | ✓ | ✓ | 6.7 | - | 3.285 | 0.8 | 3.15 | - | B018 ~ | |||||||
| XNMX Double Si | 040308-RG ded S | ✓ | ✓ | 6.7 | - | 3.285 | 0.8 | 3.15 | - | r | s d1 | B021 | |||||
| XNMX Double Si | 080608-MG ded S | ✓ | ✓ | ✓ | 12.53 | - | 6.5 | 0.8 | 4.5 | - | B020 ~ B021 | ||||||
| XOMT | 060204-MG S | ✓ | ✓ | ✓ | 7 | 4.09 | 2.45 | 0.4 | 2 | - | B028 ~ | ||||||
| XOMT | 060208-MG S | ✓ | ✓ | ✓ | 7 | 4.09 | 2.45 | 0.8 | 2 | - | B029 |
