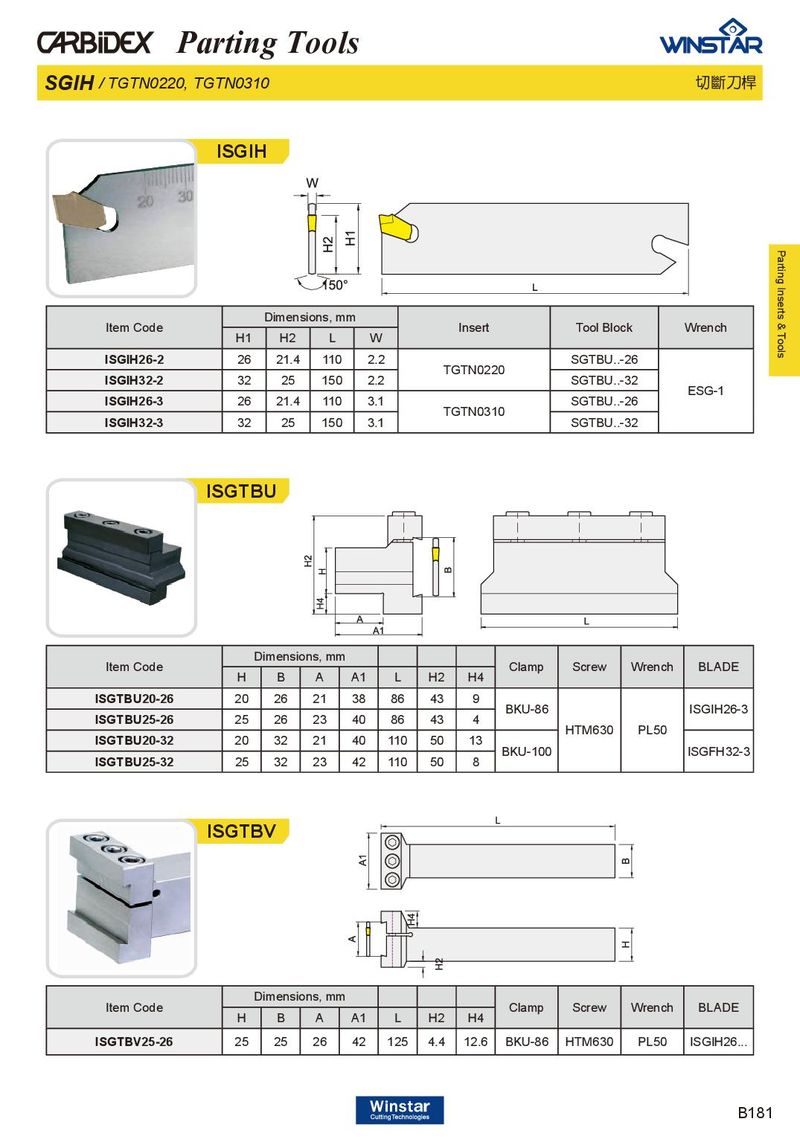

SGIH / TGTN0220, TGTN0310 切斷刀桿
ISGIH
| Item Code | H1 | Dimensi H2 | ons, mm L | W | Insert | Tool Block | Wrench |
| ISGIH26-2 | 26 | 21.4 | 110 | 2.2 | SGTBU..-26 | ||
| ISGIH32-2 | 32 | 25 | 150 | 2.2 | TGTN0220 | SGTBU..-32 | |
| ISGIH26-3 | 26 | 21.4 | 110 | 3.1 | SGTBU..-26 | ESG-1 | |
| ISGIH32-3 | 32 | 25 | 150 | 3.1 | TGTN0310 | SGTBU..-32 |
| I | SGTB | U | |||||||||
| Item Code | D | imens | ions, m | m | Clamp | Screw | Wrench | BLADE | |||
| H | B | A | A1 | L | H2 | H4 | |||||
| ISGTBU20-26 | 20 | 26 | 21 | 38 | 86 | 43 | 9 | BK | ISGIH2 | ||
| ISGTBU25-26 | 25 | 26 | 23 | 40 | 86 | 43 | 4 | U-86 | 6-3 | ||
| ISGTBU20-32 | 20 | 32 | 21 | 40 | 110 | 50 | 13 | BKU100 | HTM630 | PL50 | ISGFH323 |
| ISGTBU25-32 | 25 | 32 | 23 | 42 | 110 | 50 | 8 | - | - |
ISGTBV
Dimensions, mm
Item Code Clamp Screw Wrench BLADE
| H | B | A | A1 | L | H2 | H4 | |||||
| ISGTBV25-26 | 25 | 25 | 26 | 42 | 125 | 4.4 | 12.6 | BKU-86 | HTM630 | PL50 | ISGIH26... |
