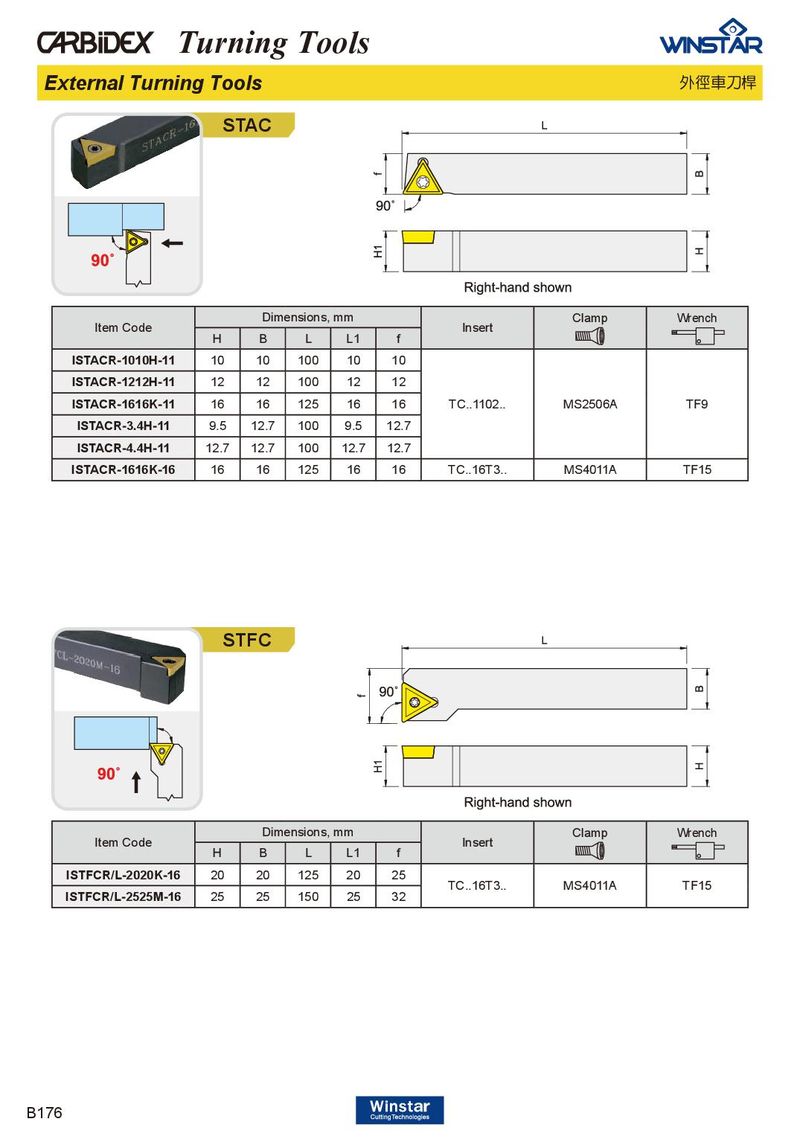

Turning Tools
External Turning Tools 外徑車刀桿
STAC


Dimensions, mm Clamp Wrench
Item Code Insert
H B L L1 f
ISTACR-1010H-11 10 10 100 10 10
ISTACR-1212H-11 12 12 100 12 12
ISTACR-1616K-11 16 16 125 16 16 TC..1102.. MS2506A TF9
ISTACR-3.4H-11 9.5 12.7 100 9.5 12.7
ISTACR-4.4H-11 12.7 12.7 100 12.7 12.7
ISTACR-1616K-16 16 16 125 16 16 TC..16T3.. MS4011A TF15


STFC


Dimensions, mm Clamp Wrench
Item Code Insert
H B L L1 f
ISTFCR/L-2020K-16 20 20 125 20 25
TC..16T3.. MS4011A TF15
ISTFCR/L-2525M-16 25 25 150 25 32


B176
