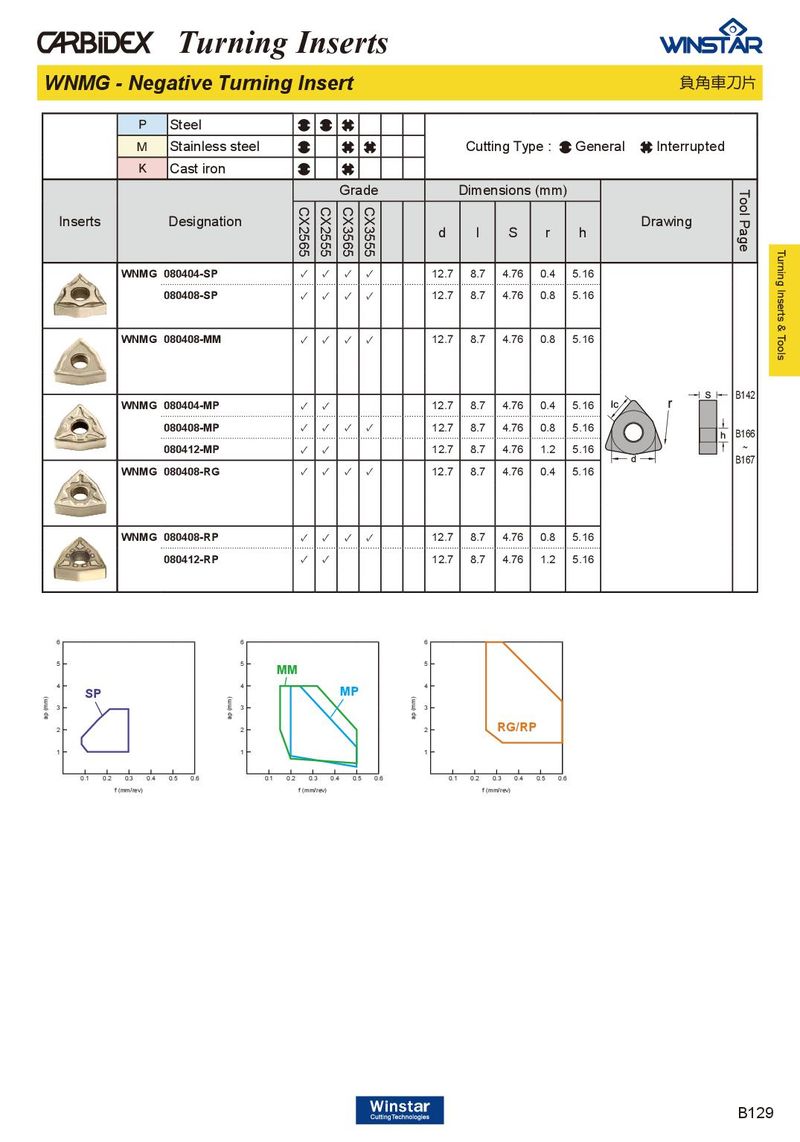

| WNMG | - Ne | gative Turnin | g In | s | ert | 負角車 | 刀片 | |||||||
| P | Steel | |||||||||||||
| M | Stainless steel | Cutt | ing Ty | pe : | Gen | eral I | nterrupted | |||||||
| K | Cast iron | |||||||||||||
| Inserts | Designation | CX2565 | CX2555 | Gr CX3565 | ade CX3555 | d | Dime l | nsions S | (mm r | ) h | Dra | wing | Tool Page | |
| WNMG | 080404-SP 080408-SP | ✓ ✓ | ✓ ✓ | ✓ ✓ | ✓ ✓ | 12.7 12.7 | 8.7 8.7 | 4.76 4.76 | 0.4 0.8 | 5.16 5.16 | ||||
| WNMG | 080408-MM | ✓ | ✓ | ✓ | ✓ | 12.7 | 8.7 | 4.76 | 0.8 | 5.16 | ||||
| WNMG | 080404-MP 080408-MP 080412-MP | ✓ ✓ ✓ | ✓ ✓ ✓ | ✓ | ✓ | 12.7 12.7 12.7 | 8.7 8.7 8.7 | 4.76 4.76 4.76 | 0.4 0.8 1.2 | 5.16 5.16 5.16 | B142 B166 ~ B167 | |||
| WNMG | 080408-RG | ✓ | ✓ | ✓ | ✓ | 12.7 | 8.7 | 4.76 | 0.4 | 5.16 | ||||
| WNMG | 080408-RP 080412-RP | ✓ ✓ | ✓ ✓ | ✓ | ✓ | 12.7 12.7 | 8.7 8.7 | 4.76 4.76 | 0.8 1.2 | 5.16 5.16 |
| 6 | 6 | 6 |
| 5 | 5 | MM 5 |
| 4 | SP 4 | MP 4 |
| 3 | 3 | 3 |
| RG/RP | ||
| 2 | 2 | 2 |
| 1 | 1 | 1 |
| 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 |
| f (mm/rev) | f (mm/rev) | f (mm/rev) |
