Каталог Winstar твердосплавные пластины и вставки

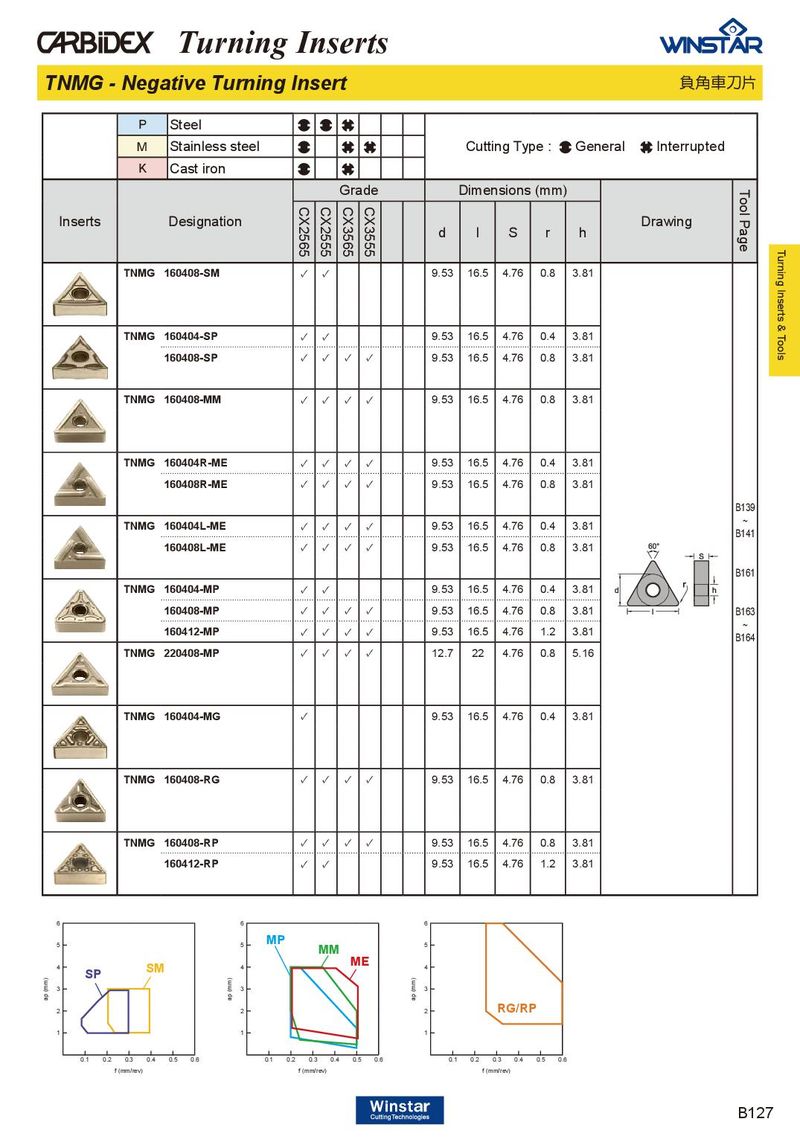

TNMG -	P M Neg	Steel Stainless steel ative Turnin	g Ins	e	rt				Cutti	ng Typ	e :	Gene	ral Interrupted 負角車	刀片
	K	Cast iron
			C	C	Gra C	de C			Dimen	sions	(mm	)		Tool
Inserts		Designation	X2565	X2555	X3565	X3555		d	l	S	r	h	Drawing	Page
	TNMG	160408-SM	✓	✓				9.53	16.5	4.76	0.8	3.81
	TNMG	160404-SP 160408-SP	✓ ✓	✓ ✓	✓	✓		9.53 9.53	16.5 16.5	4.76 4.76	0.4 0.8	3.81 3.81
	TNMG	160408-MM	✓	✓	✓	✓		9.53	16.5	4.76	0.8	3.81
	TNMG	160404R-ME 160408R-ME	✓ ✓	✓ ✓	✓ ✓	✓ ✓		9.53 9.53	16.5 16.5	4.76 4.76	0.4 0.8	3.81 3.81		B139
	TNMG	160404L-ME 160408L-ME	✓ ✓	✓ ✓	✓ ✓	✓ ✓		9.53 9.53	16.5 16.5	4.76 4.76	0.4 0.8	3.81 3.81		~ B141 B161
	TNMG	160404-MP 160408-MP 160412-MP	✓ ✓ ✓	✓ ✓ ✓	✓ ✓	✓ ✓		9.53 9.53 9.53	16.5 16.5 16.5	4.76 4.76 4.76	0.4 0.8 1.2	3.81 3.81 3.81		B163 ~ B164
	TNMG	220408-MP	✓	✓	✓	✓		12.7	22	4.76	0.8	5.16
	TNMG	160404-MG	✓					9.53	16.5	4.76	0.4	3.81
	TNMG	160408-RG	✓	✓	✓	✓		9.53	16.5	4.76	0.8	3.81
	TNMG	160408-RP 160412-RP	✓ ✓	✓ ✓	✓	✓		9.53 9.53	16.5 16.5	4.76 4.76	0.8 1.2	3.81 3.81
0.1 0.2 1 2 3 4 5 6 ap (mm) SP	0.3 0.4 f (mm/rev) SM	0.1 1 2 3 4 5 6 ap (mm) M 0.5 0.6	0.2 0.3 f (mm/r P	ev) M	0.4 0.5 M M	0.6 E	1 2 3 4 5 6 ap (mm)	0.1	0.2 0 f (mm	.3 0.4 /rev) RG/RP	0.5 0.	6

Каталог Winstar твердосплавные пластины и вставки - страница 133
